Vanity Mirror Light: Removal
NOTE:
- The vanity mirror light is integrated into the sun visor assembly. Replace the sun visor assembly if faulty.
- Do not remove the sun visor assembly if removing the bulb only.
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the sun visor assembly. Ref. to EXTERIOR/INTERIOR TRIM>Sun Visor>REMOVAL .

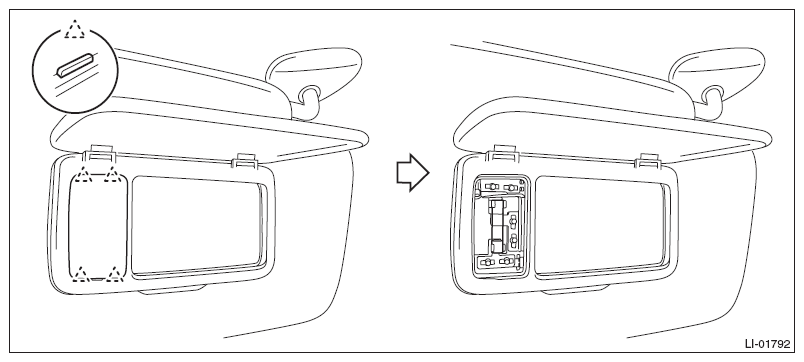

- Release the claws and remove the lens and vanity mirror light bulb.CAUTION:
- When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
- Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
