MODELS WITHOUT EyeSight

NOTE:
  • The spot map light is a single unit with the overhead console. Replace the overhead console if faulty.
  • Do not remove the overhead console if removing the bulb only.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the overhead console assembly.
    1. Push and open the rear end of the overhead console lid, and remove the screws.
    2. Remove the clips and pull out the overhead console to disconnect the connectors.

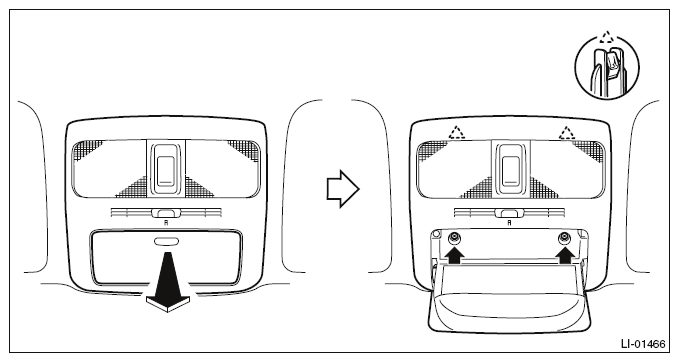

    Fig 1: Removing Overhead Console Assembly
    G09484266Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws, then detach the spot map light cover and bulb.
    CAUTION:
    • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
    • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

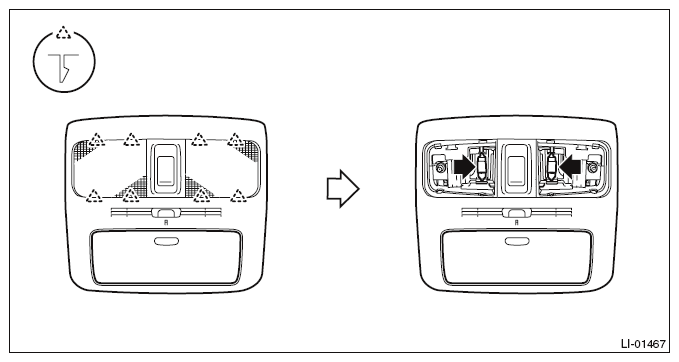

Fig 2: Locating Spot Map Light Cover Claws
G09484267Courtesy of SUBARU OF AMERICA, INC.
