MODELS WITH EyeSight

NOTE:
  • The spot map light is a single unit with the stereo camera cover. If defective, replace the stereo camera cover.
  • Do not remove the stereo camera cover if removing the bulb only.
  1. Remove the stereo camera cover. Ref. to EyeSight>Stereo Camera>REMOVAL .
  2. Release the claws, then detach the spot map light cover and bulb.
    CAUTION:
    • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
    • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

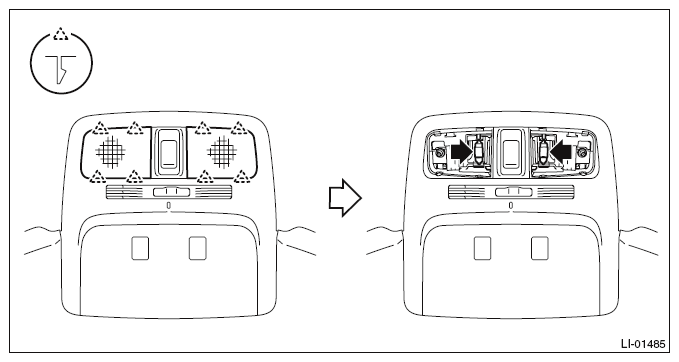

Fig 1: Locating Spot Map Light Cover Claws
G09484268Courtesy of SUBARU OF AMERICA, INC.
