SRF OFF Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  3. Remove the screws and release the claws, then detach the cover.

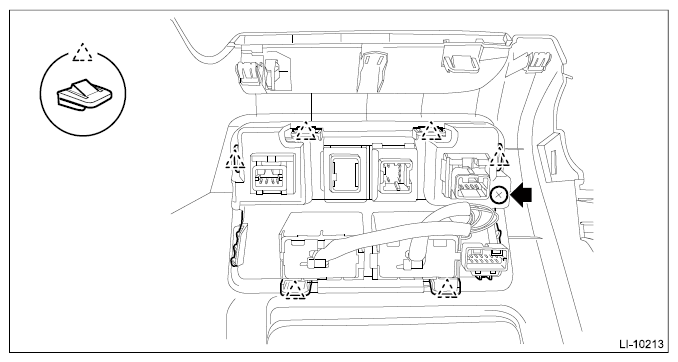

    Fig 1: Locating Cover Screws And Claws
    G11268564Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws and remove the SRF OFF switch.

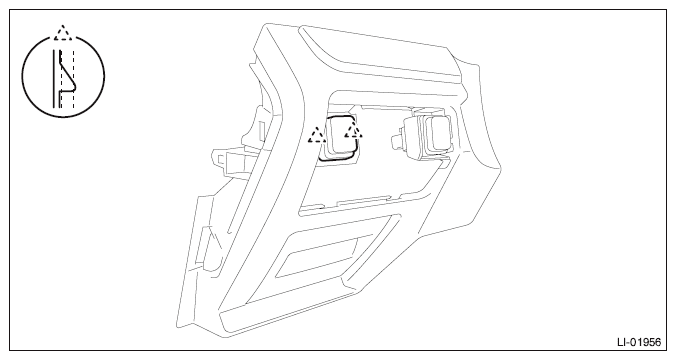

Fig 2: Removing SRF OFF Switch Claws
G10299434Courtesy of SUBARU OF AMERICA, INC.
