Light Control Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the sensor - automatic light.
    CAUTION: Be careful not to damage the sensors and interior trims when removing.
    1. Release the connector and claws, and remove the grille - front defroster.

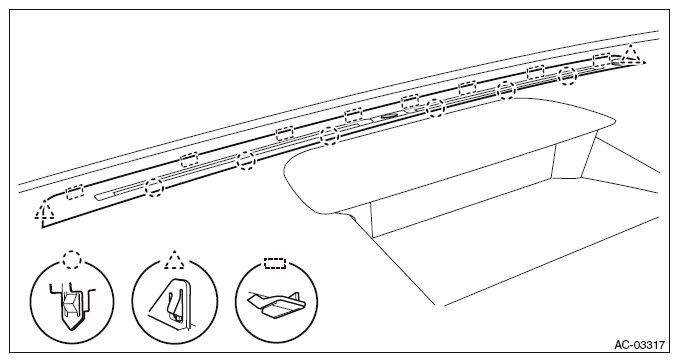

      Fig 1: Locating Grille - Defroster Connector And Claws
      G09483812Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws, and remove the sensor - automatic light from the grille - front defroster.
Fig 2: Locating Automatic Light Claws From Grille - Front Defroster
G08315010Courtesy of SUBARU OF AMERICA, INC.
