License Plate Light: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the license plate light.
    1. Release the claws and pull out the license plate light.
    2. Disconnect the connector and remove the bulb socket and bulb from the license plate light.
      CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

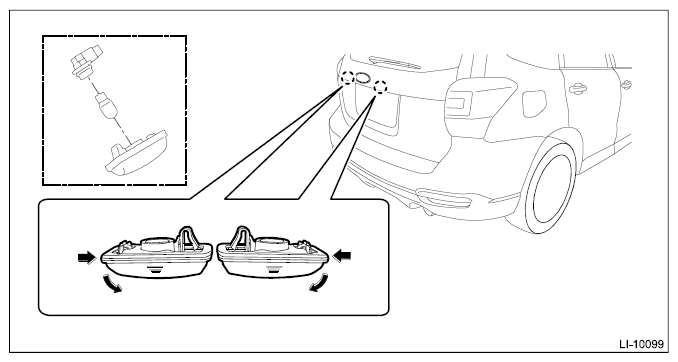

Fig 1: Removing License Plate Light
G11268535Courtesy of SUBARU OF AMERICA, INC.
