Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the clips and remove the air intake duct (rear). (When removing the headlight assembly RH)
    Fig 1: Locating Air Intake Duct (Rear) Clips
    G11268502Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>REMOVAL .
  4. Remove the bolts and clips, and remove the bracket - front bumper corner.

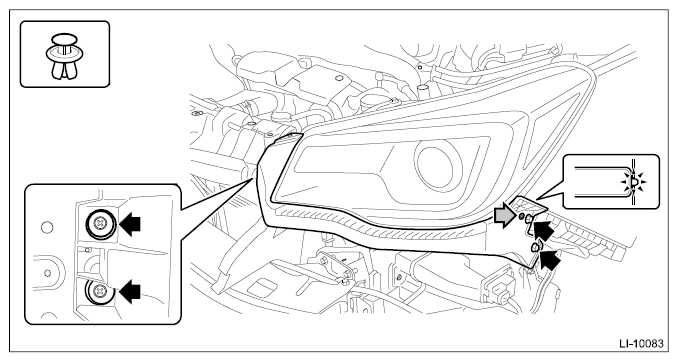

    Fig 2: Locating Bracket - Front Bumper Corner Bolts And Clips
    G11268503Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the light assembly - head.
    CAUTION: Be careful not to damage the light assembly - head and the fender COMPL - front.
    1. Disconnect connectors.
    2. Remove the bolts and clips, and remove the light assembly - head.

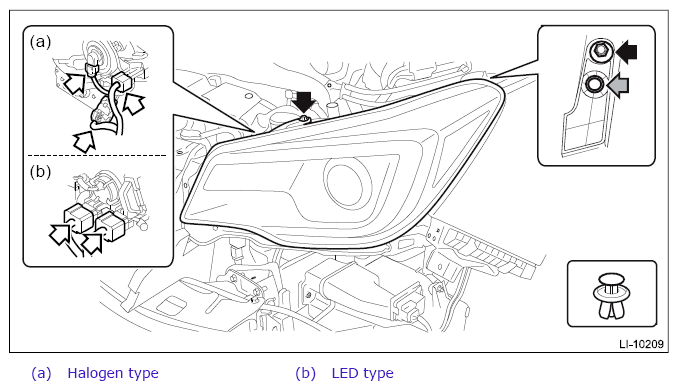

Fig 3: Locating Light Assembly - Head Bolts And Clips
G11268504Courtesy of SUBARU OF AMERICA, INC.
