Lighting System: General Description: Specification

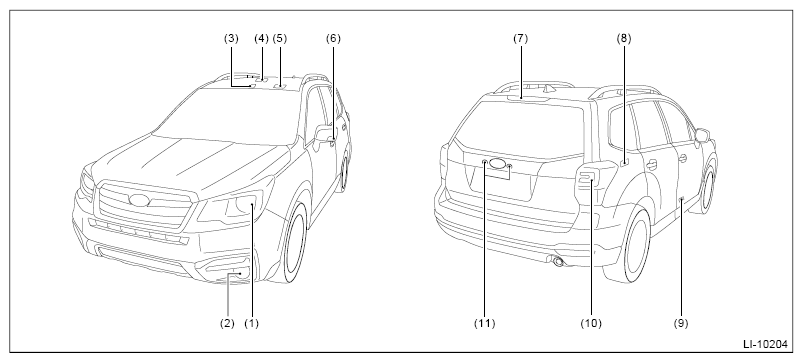

Fig 1: Identifying Lighting System Components

Courtesy of SUBARU OF AMERICA, INC.

No.	Description		Capacity and wattage	Type
(1)	Headlight	Halogen type (low beam)	12 V - 55 W	H11
		Halogen type (high beam)	12 V - 60 W	HB3
		LED type (high/low beam)	12 V - 34/29 W (LED)	(1)
		Front turn signal light	12 V - 21 W	7444NA
		Parking light (halogen type)	12 V - 5 W	W5W(2)
		DRL/parking light (LED type)	12 V - 12/1.2 W (LED)	(1)
		Side marker light	12 V - 5 W	W5W
(2)	Front fog light	Model without SRF	12 V - 19 W	H16
		Model with SRF	12 V - 55 W	H11
(3)	Spot map light		12 V - 8 W	-
(4)	Room light		12 V - 8 W	-
(5)	Vanity mirror light		12 V - 2 W	-
(6)	Side turn signal light		12 V -1.1 W (LED)	(1)
(7)	High-mounted stop light		13.5 V -1.2 W (LED)	(1)
(8)	Luggage room light		12 V - 5 W	W5W
(9)	Door step light		12 V - 5 W	W5W
(10)	Rear combination light	Tail & side marker light	12 V - 5 W	W5W
		Stop light	12 V - 1.1 W (LED)	(1)
		Back-up light	12 V - 16 W	W16W
		Turn signal light	12 V - 21 W	WY21W
(11)	License plate light		12 V - 5 W	W5W
(1) Non-disassembly type (2) Light of the parking light (halogen type) bulb is whiter than that of a normal bulb.
