Front Turn Signal Light Bulb: Removal

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the clips and remove the air intake duct (rear). (When removing the front turn signal light bulb RH)

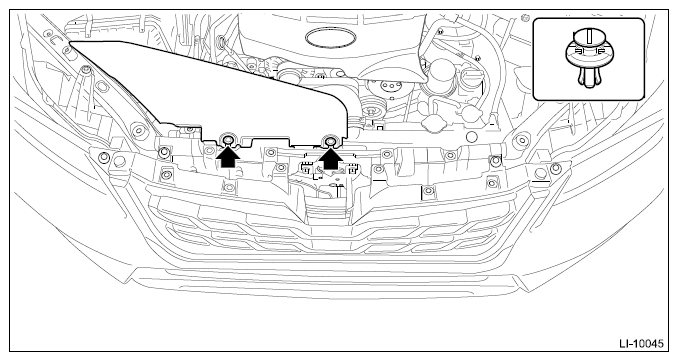

   Fig 1: Locating Air Intake Duct (Rear) Clips

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the front turn signal light bulb.
   1. Remove the harness clip.
   2. Remove the bulb socket and front turn signal light bulb.
      CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

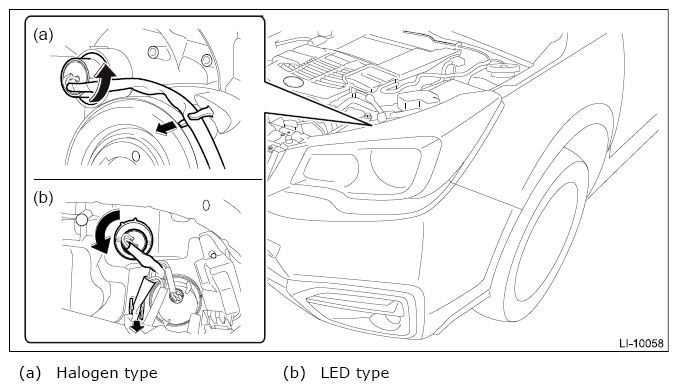

Fig 2: Removing Front Turn Signal Light Bulb

Courtesy of SUBARU OF AMERICA, INC.
