Front Fog Light Bulb: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the clips, and turn over the front side of the mud guard - front.
    Fig 1: Turning Over Front Side Of Mud Guard Front
    G11268526Courtesy of SUBARU OF AMERICA, INC.
  3. From the bottom of the bumper face - front, remove the front fog light bulb.
    1. Disconnect the connector.
    2. Remove the bulb.
      CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

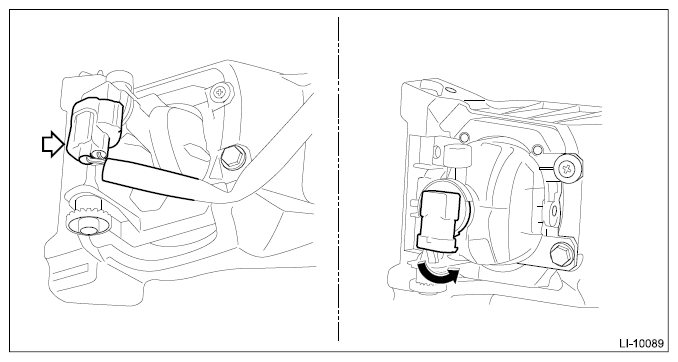

Fig 2: Removing Front Fog Light Bulb
G11268529Courtesy of SUBARU OF AMERICA, INC.
NOTE: Detach in the same manner for the model with SRF.
