Front Fog Light Assembly: Removal

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the bolts and clips, and turn over the front side of the mud guard - front.

Fig 1: Turning Over Front Side Of Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
From the bottom of the bumper face - front, remove the fog light assembly - front.
1. Disconnect the connector.
2. Remove the bolts and clips, and remove the fog light assembly - front.

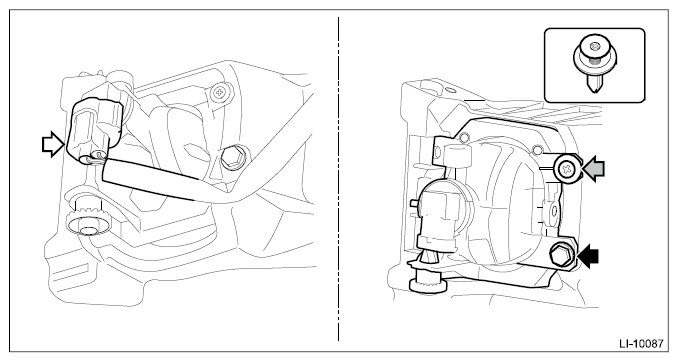

Fig 2: Locating Fog Light Assembly (Front) Bolts And Clips
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Detach in the same manner for the model with SRF.
Remove the bracket - front fog assembly as required. (Model with bracket)
1. Remove the bolt and clip.
2. Turn the bracket around the (a) portion as an axis to remove the bracket - front fog assembly.
  CAUTION: Do not insert any tools into the bracket (a) information. Otherwise, the claws of bracket and bumper installation holes may be damaged.

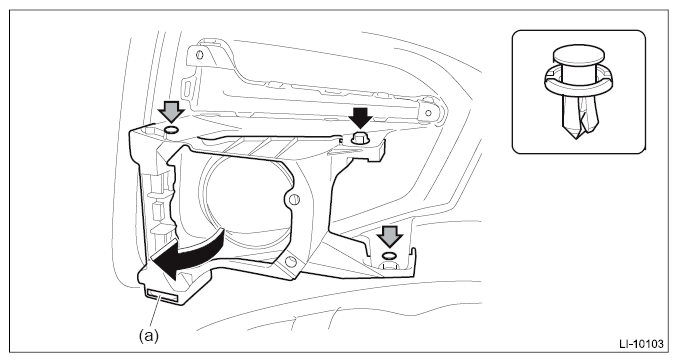

Fig 3: Locating Bracket - Front Fog Assembly Bolt And Clip

Courtesy of SUBARU OF AMERICA, INC.
