Day Time Running Resistor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the bolts and clips, and turn over the front side of the mud guard - front.

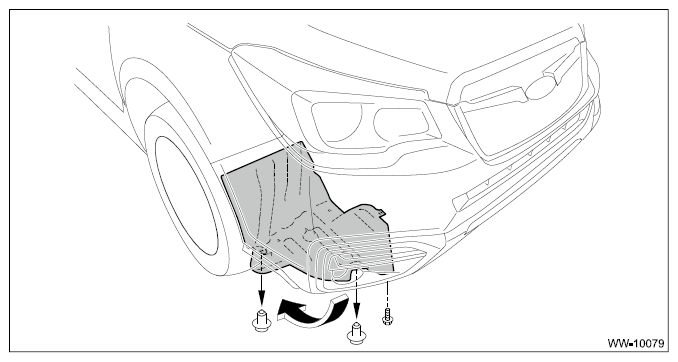

    Fig 1: Turning Over Front Side Of Mud Guard - Front
    G11268558Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the resistor assembly - daytime running light.
    CAUTION: The resistor may become hot. Be careful not to burn yourself when removing it.
    1. Disconnect the connector.
    2. Remove the bolts, then remove the resistor assembly - daytime running light.

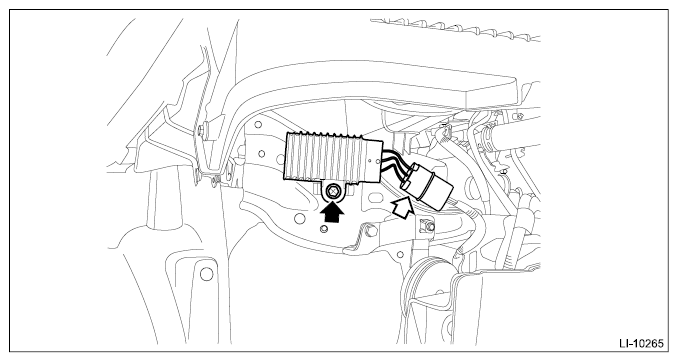

Fig 2: Locating Resistor Assembly Bolts And Connector
G11268559Courtesy of SUBARU OF AMERICA, INC.
