Clearance/Parking Light Bulb: Removal

NOTE: Since the LED type parking light is integrated into the headlight assembly, it cannot be removed.

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the clips and remove the air intake duct (rear). (When removing the parking light bulb RH)
   Fig 1: Locating Air Intake Duct (Rear) Clips

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the parking light bulb.
   1. Remove the harness clip.
   2. Remove the bulb socket and parking light bulb.
      CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

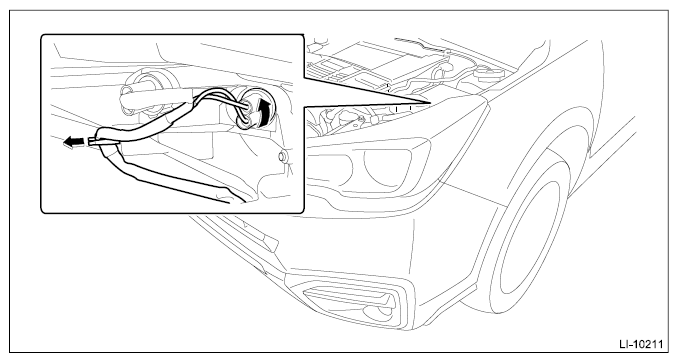

Fig 2: Removing Parking Light Bulb

Courtesy of SUBARU OF AMERICA, INC.
