Telematics System (Diagnostics): Electrical Component Location: Location

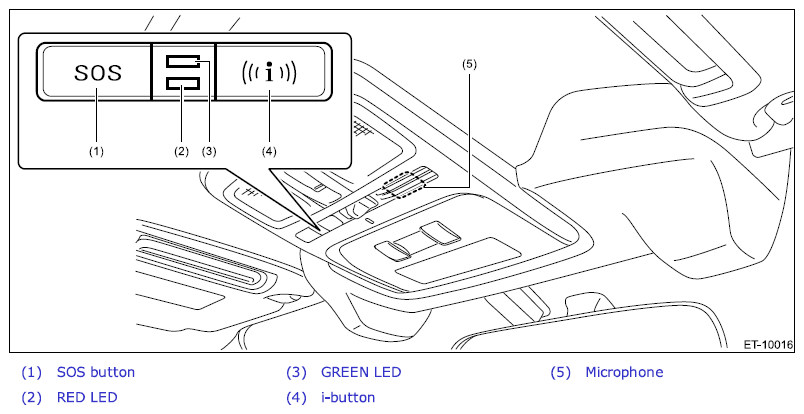

Fig 1: Telematics System Electrical Components Location (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

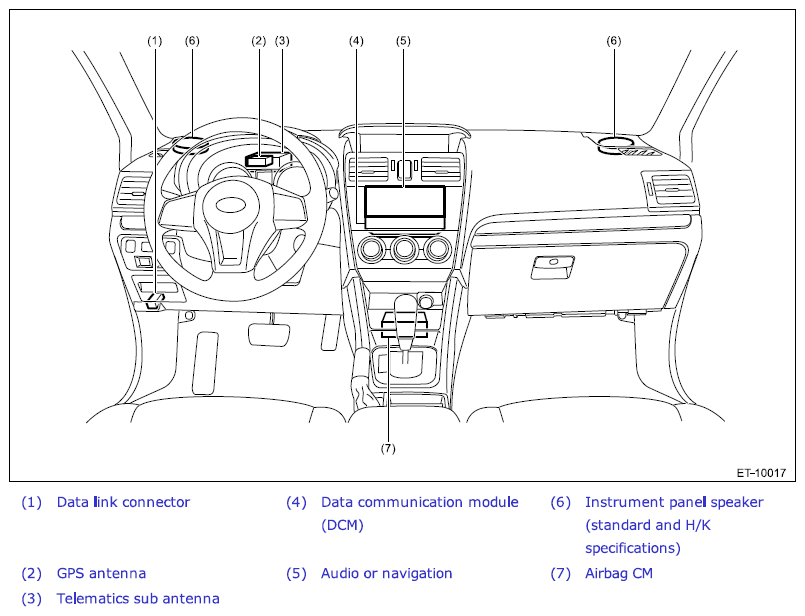

Fig 2: Telematics System Electrical Components Location (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

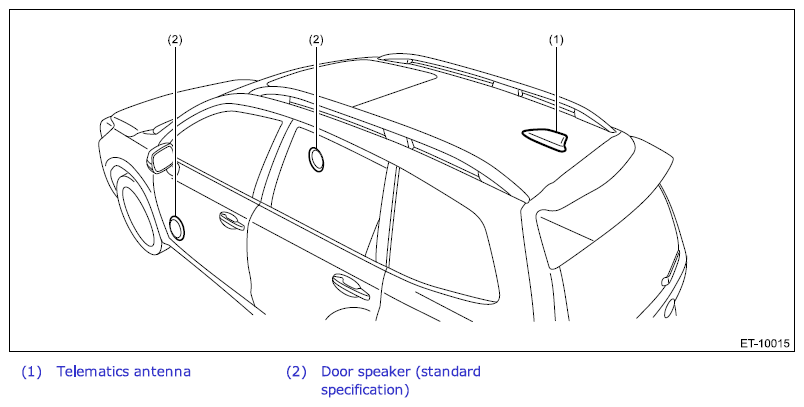

Fig 3: Telematics System Electrical Components Location (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For the LED operation condition, refer to "LED operation condition" in "Check List for Interview". Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>Check List for Interview>CHECK>LED ILLUMINATION STATUS LIST .
