DTC B2A09 I-Call Button Circuit: Wiring diagram

Telematics Ref. to WIRING SYSTEM>Telematics System>WIRING DIAGRAM .

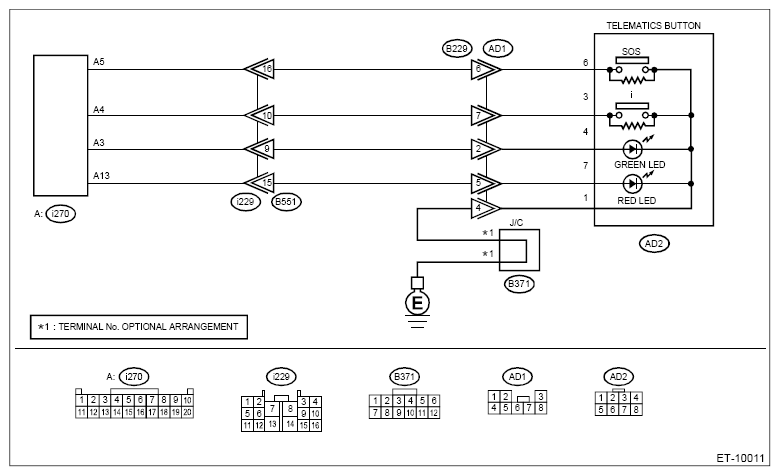

Fig 1: I-Call Button Circuit System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: CommCheck is required after replacing the DCM. Ref. to ENTERTAINMENT>Telematics System>OPERATION>REGISTRATION (COMM CHECK) .

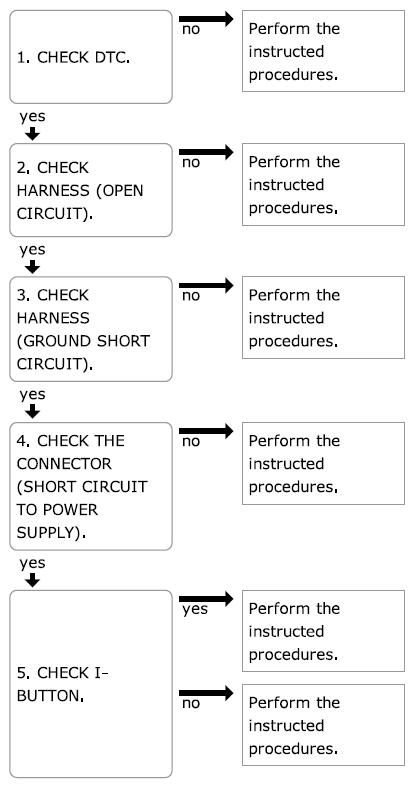

Fig 2: I-Call Button Circuit Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
