DTC B2A04 Mic Circuit: Wiring diagram

Telematics Ref. to WIRING SYSTEM>Telematics System>WIRING DIAGRAM .

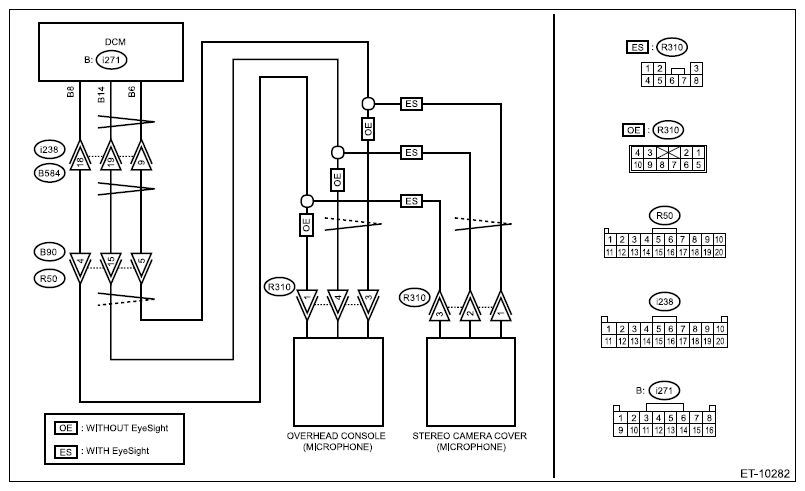

Fig 1: MIC Circuit System Wiring Diagram
G11271759Courtesy of SUBARU OF AMERICA, INC.
CAUTION: CommCheck is required after replacing the DCM. Ref. to ENTERTAINMENT>Telematics System>OPERATION>REGISTRATION (COMM CHECK) .

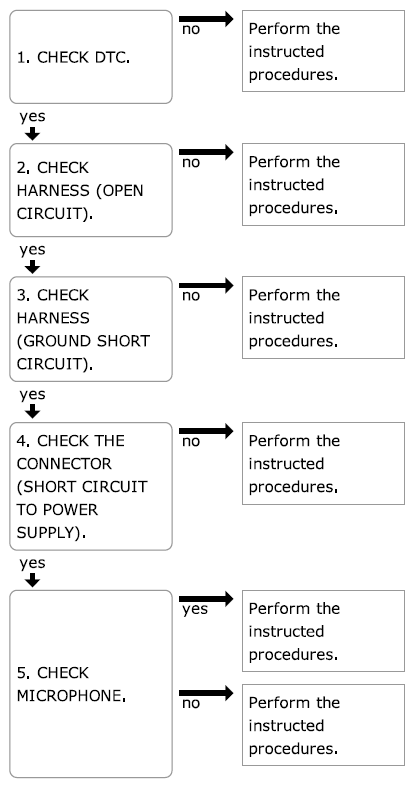

Fig 2: MIC Circuit Diagnostics Flowchart
G11271760Courtesy of SUBARU OF AMERICA, INC.
