DTC B2A01 Tel1 Antenna Circuit: Wiring diagram

• Telematics Ref. to WIRING SYSTEM>Telematics System>WIRING DIAGRAM .

Fig 1: TEL1 Antenna System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: CommCheck is required after replacing the DCM. Ref. to ENTERTAINMENT>Telematics System>OPERATION>REGISTRATION (COMM CHECK) .

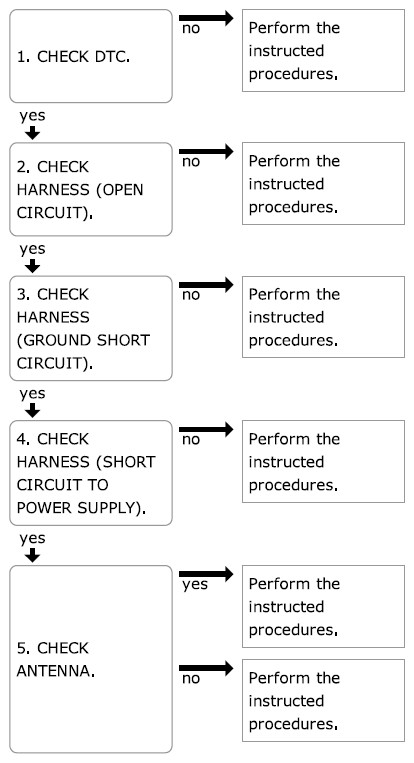

Fig 2: TEL1 Antenna Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
