System Block Diagram

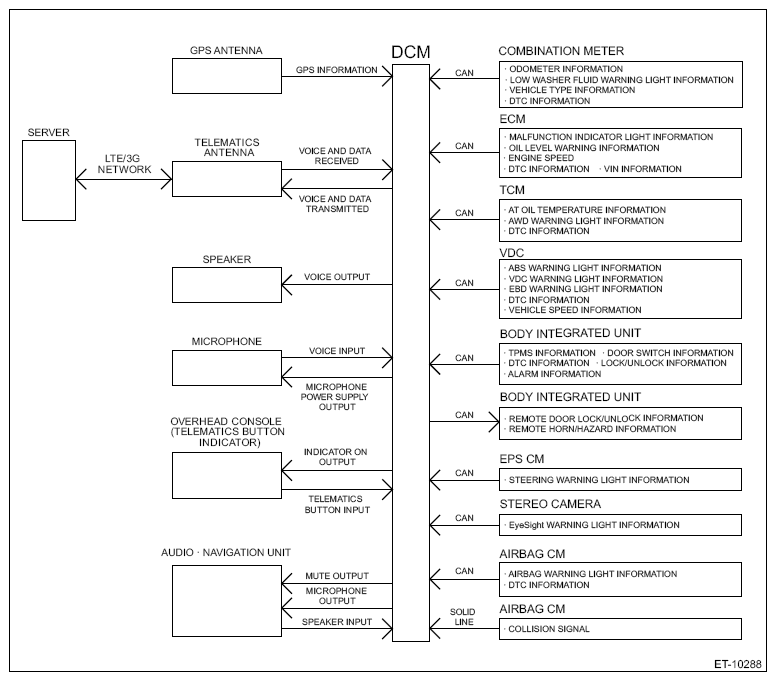

Main signals used between DCM and relevant Control Module

Fig 1: Data Communication Module System Block Diagram
G11264483Courtesy of SUBARU OF AMERICA, INC.
