Rearview Camera System: Removal

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - rear gate and the garnish assembly - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>REMOVAL .
Remove the rearview camera assembly.
CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
1. Disconnect the connector.
2. Disconnect the claws and then remove the rearview camera assembly.

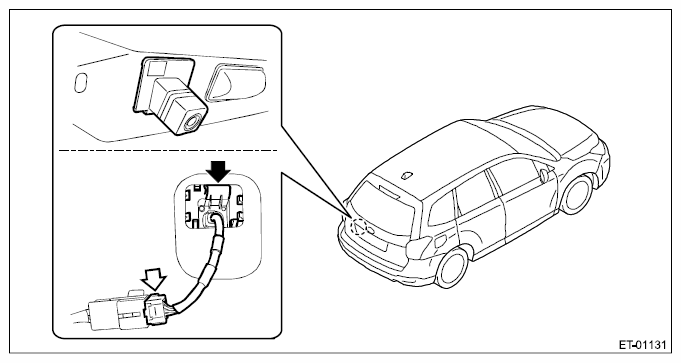

Fig 1: Locating Claws And Connector Of Rearview Camera Assembly

Courtesy of SUBARU OF AMERICA, INC.
