Rear Speaker: Removal: Tweeter

NOTE: Only for model with power amplifier.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the speaker assembly - tweeter.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly - tweeter.

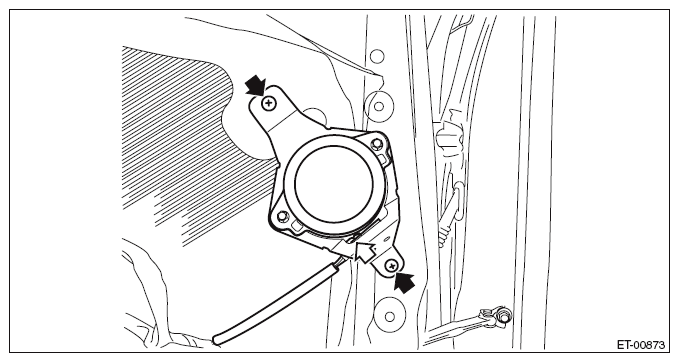

Fig 1: Locating Speaker Assembly - Tweeter Screws
G09484377Courtesy of SUBARU OF AMERICA, INC.
NOTE: As necessary, remove the bracket from the speaker assembly - tweeter.
Fig 2: Removing Bracket From Speaker Assembly - Tweeter
G09484378Courtesy of SUBARU OF AMERICA, INC.
