Luggage Room

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear apron LH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
  3. Remove the socket assembly.

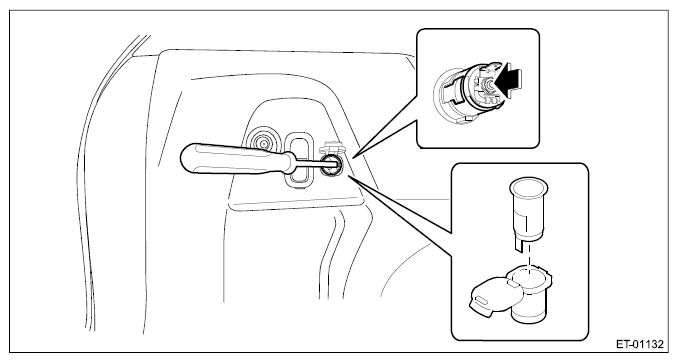

    1. While releasing the claw inside, press it in from the rear to remove the socket assembly.
      Fig 1: Removing Socket Assembly
      G11268688Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the cap - socket.
