Rear Accessory Power Supply Socket: Removal: Console

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  3. Remove the socket assembly.
    1. While releasing the claw inside, press it in from the rear to remove the socket assembly.

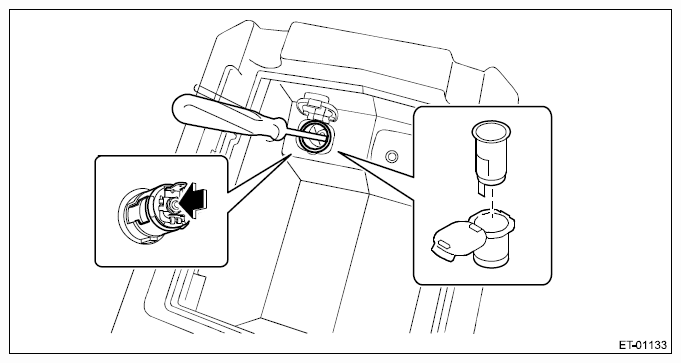

      Fig 1: Removing Socket Assembly
      G10408378Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the cap - socket.
