Door Speaker

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the speaker assembly - front.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly - front.
      CAUTION: Be careful not to damage the claw for temporary retention.

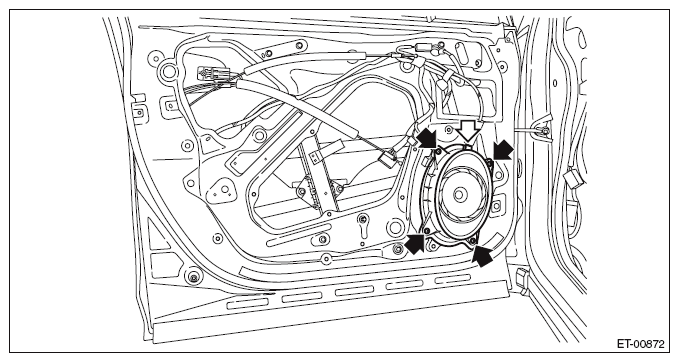

Fig 1: Locating Front Speaker Assembly Screws
G09484376Courtesy of SUBARU OF AMERICA, INC.
