External Connection Terminal: Removal

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
3. While pressing the claw, press it in from the rear to remove the unit assembly - AUX.

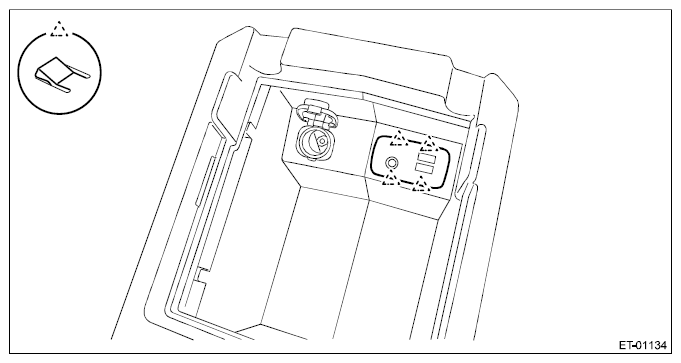

Fig 1: Locating Unit Assembly - AUX Claws

Courtesy of SUBARU OF AMERICA, INC.
