Radio/Telematics Antenna

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - roof assembly. Ref. to EXTERIOR/INTERIOR TRIM>Roof Trim>REMOVAL .
  3. Remove the antenna assembly - radio or telematics.
    1. Disconnect the connector and remove the mounting nut (A).
    2. Pull out the antenna assembly - radio or antenna assembly - telematics from the top of roof panel.

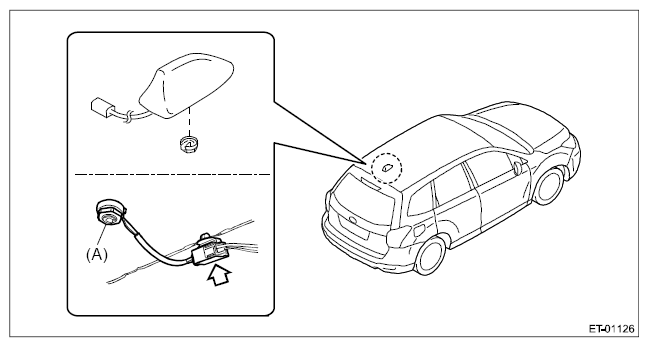

Fig 1: Pulling Out Antenna Assembly - Radio
G10408358Courtesy of SUBARU OF AMERICA, INC.
