Subaru Select Monitor: Inspection: Wiring diagram

EyeSight system Ref. to WIRING SYSTEM>EyeSight System>WIRING DIAGRAM .

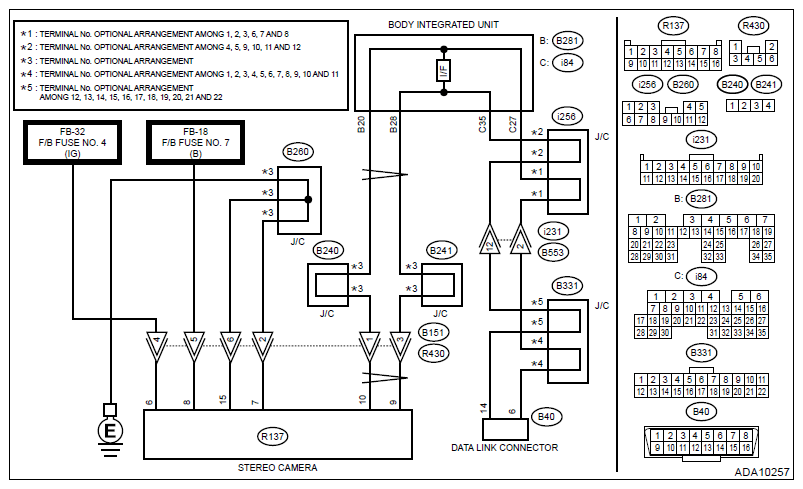

Fig 1: EyeSight System Wiring Diagram (Inspection)
G11271274Courtesy of SUBARU OF AMERICA, INC.

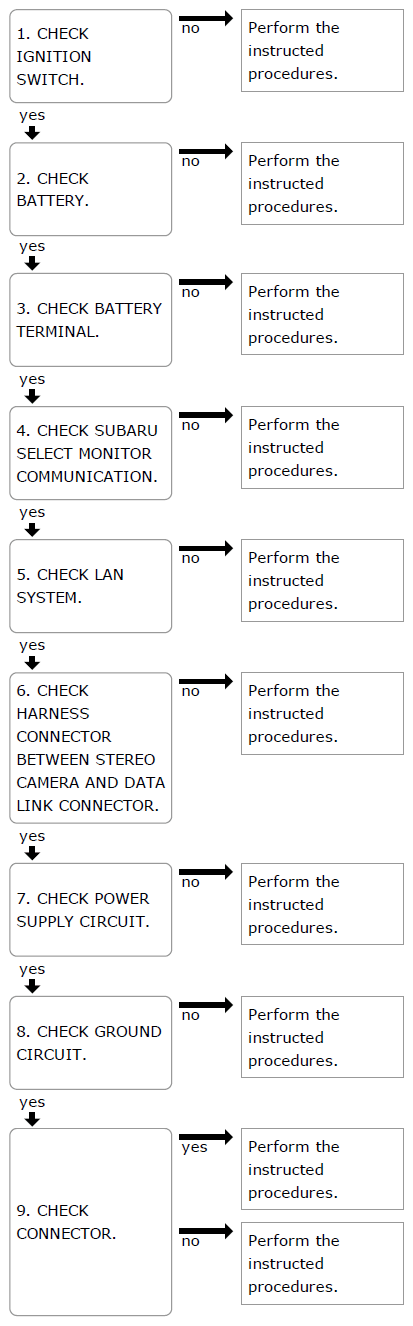

Fig 2: Eyesight System Inspection Flowchart
G11271275Courtesy of SUBARU OF AMERICA, INC.
