Load On The Roof

Check that load on the roof is not sticking out to the front of the stereo camera.

Standard:

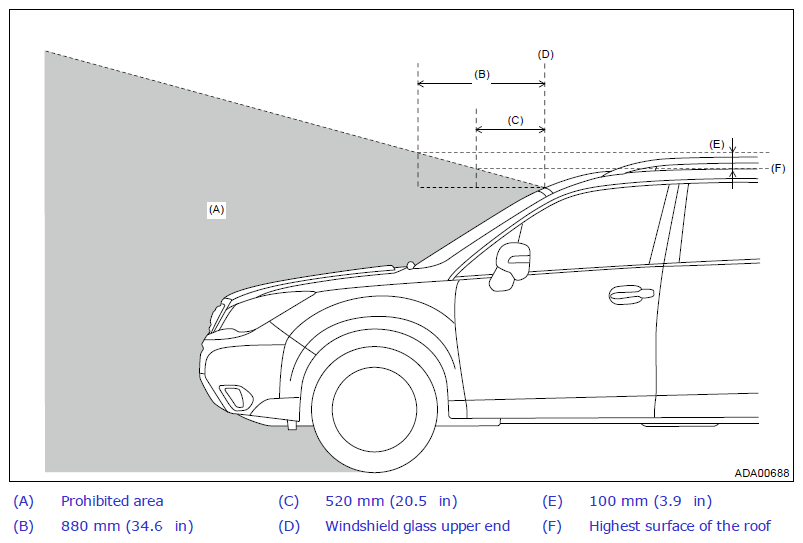

The load on the roof is placed outside the prohibited area (A) shown in the figure below. Ref. to WHEEL AND TIRE SYSTEM>General Description>SPECIFICATION .

Fig 1: Checking Front Stereo Camera Roof Load

Courtesy of SUBARU OF AMERICA, INC.
