SUBARU Eyesight System (Driver Assist) (Diagnostics): Electrical Component Location: Location: Switch

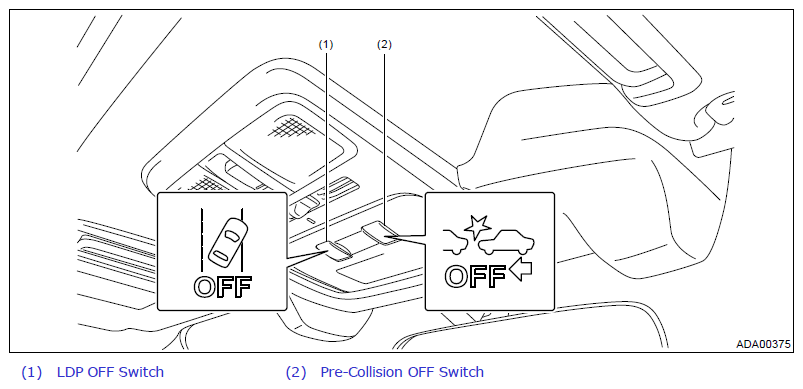

Fig 1: Identifying Switch Components (1 Of 2)
G11271270Courtesy of SUBARU OF AMERICA, INC.

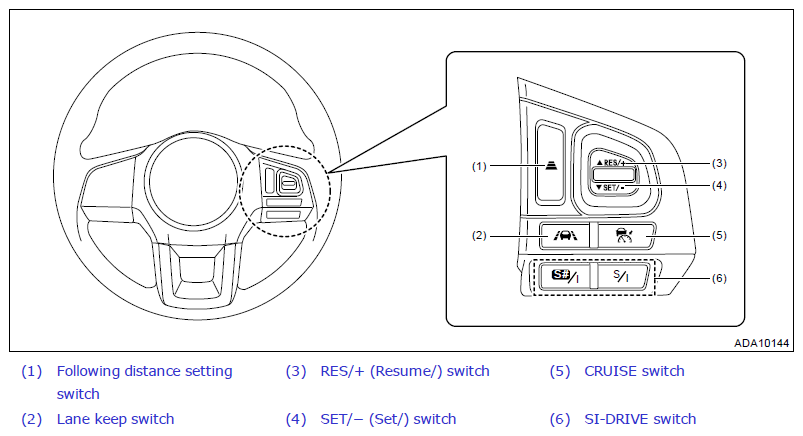

Fig 2: Identifying Switch Components (2 Of 2)
G11271271Courtesy of SUBARU OF AMERICA, INC.
