Combination Meter

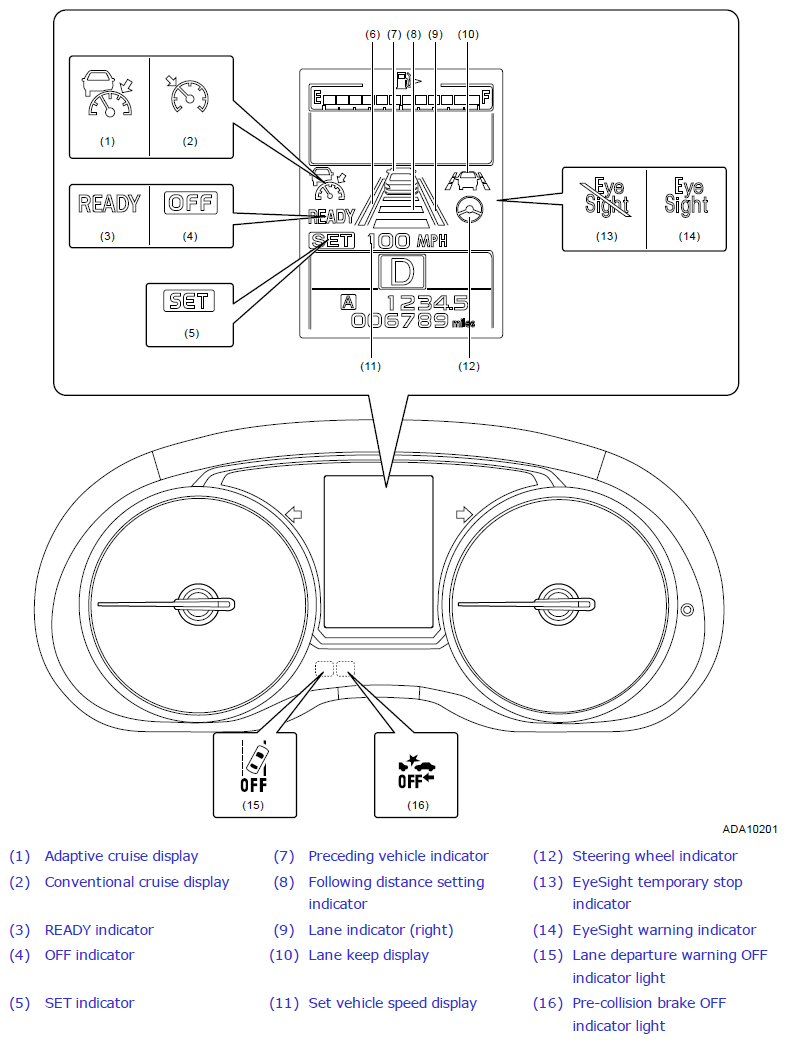

Fig 1: Identifying Combination Meter Components
G11271269Courtesy of SUBARU OF AMERICA, INC.
