System Block Diagram

Main signals used between stereo camera and relevant control module

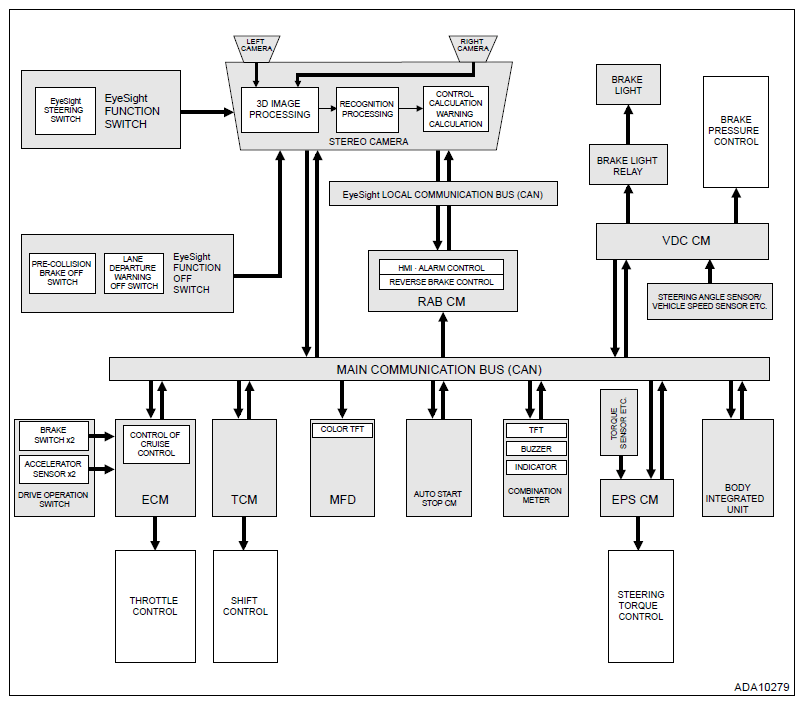

Fig 1: Stereo Camera And Control Module System Block Diagram
G11271273Courtesy of SUBARU OF AMERICA, INC.
