Reverse Automatic Braking Control Module: Removal

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the mat - rear floor CTR and LH, cover - trunk and spacer - rear floor side LH.

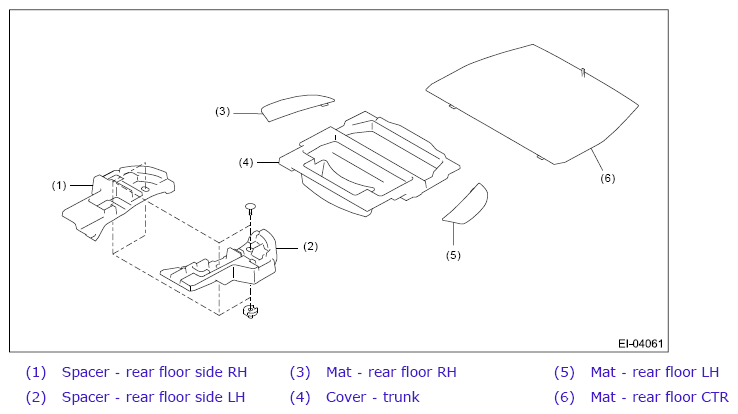

   Fig 1: Removing Mat - Rear Floor CTR And LH

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the Reverse Automatic Braking Control Module.
   1. Remove the nut.
   2. Disconnect the connector and remove the Reverse Automatic Braking Control Module.

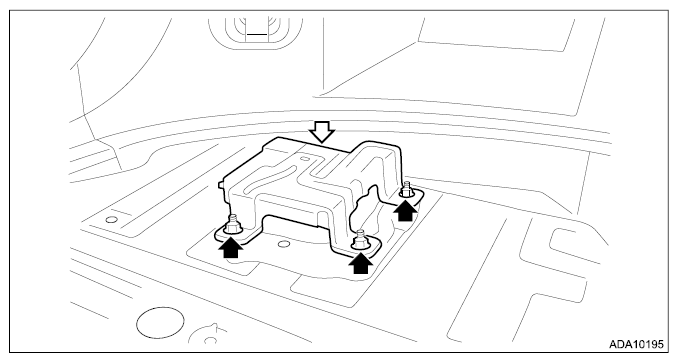

Fig 2: Locating Reverse Automatic Braking Control Module With Nuts

Courtesy of SUBARU OF AMERICA, INC.
