Reverse Automatic Braking (Diagnostics): Electrical Component Location: Location

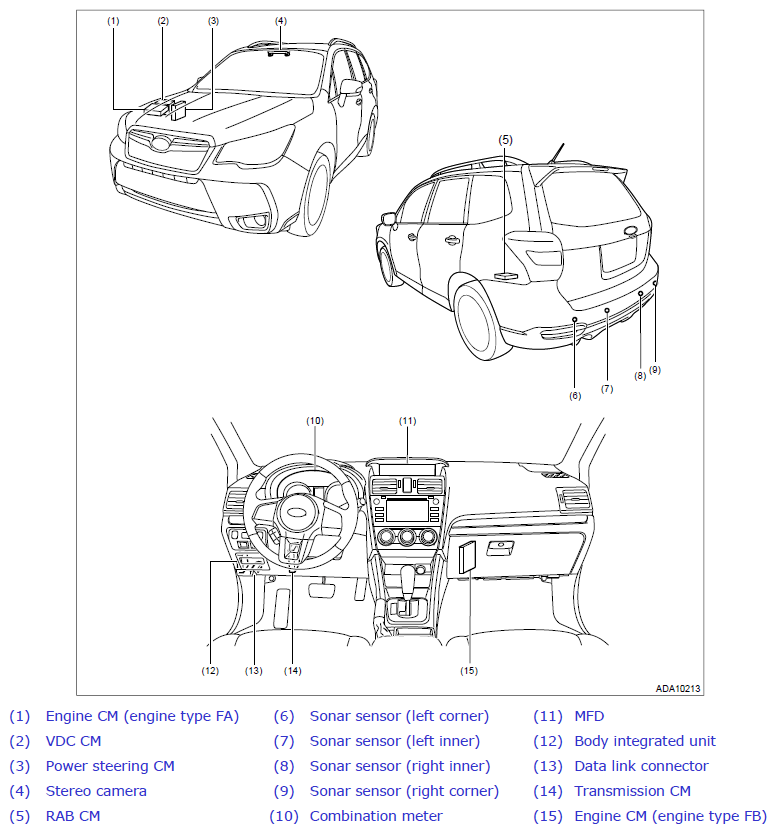

Fig 1: Reverse Automatic Braking Electrical Components Location

G11271786

Courtesy of SUBARU OF AMERICA, INC.
