DTC B2C11 RRC Sonar Harness Low: Wiring diagram

Reverse Automatic Braking Ref. to WIRING SYSTEM>Reverse Automatic Braking .

Fig 1: RRC Sonar Harness Low System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

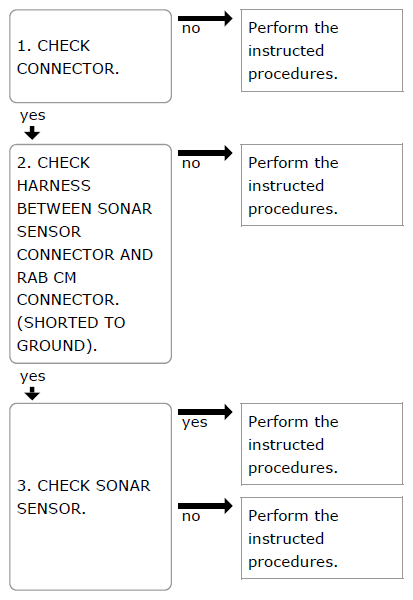

Fig 2: RRC Sonar Harness Low Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
