EyeSight STEERING SWITCH

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

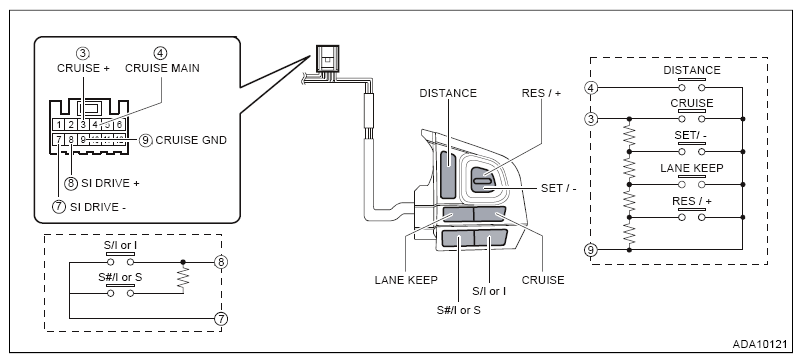

Fig 1: EyeSight Steering Switch Circuit Diagram

G11272152

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	{CRUISE} SET/- LANE KEEP RES/+	All OFF	Approx. 4, 020 Ω
	{CRUISE}	ON	Less than 1 Ω
	SET/-	ON	Approx. 250 Ω
	LANE KEEP	ON	Approx. 680 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	{DISTANCE}	OFF	1 MΩ or more
4 - 9	{DISTANCE}	ON	Less than 1 Ω
8 - 7	S/I or I S#/I or S	All OFF	1 MΩ or more
	S/I or I	ON	Less than 1 Ω
	S#/I or S	ON	Approx. 1, 800 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

Terminal No.	Inspection conditions	Specification
10 (+) - 11 (-)	Apply battery voltage.	Light ON

Replace the EyeSight steering switch if it is found defective.
