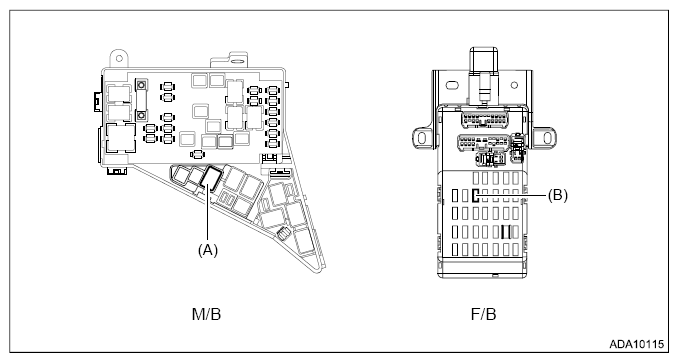

Relay and Fuse: Location
| Main fuse box | Brake light relay | (A) |
| Relay & fuse box | Fuse 10 A (stop light and brake switch, brake light relay) | (B) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit
.
