Subaru Select Monitor: Inspection: Wiring diagram

BSD/RCTA system Ref. to Blind WIRING SYSTEM>Blind Spot Detection/Rear Cross Traffic Alert .

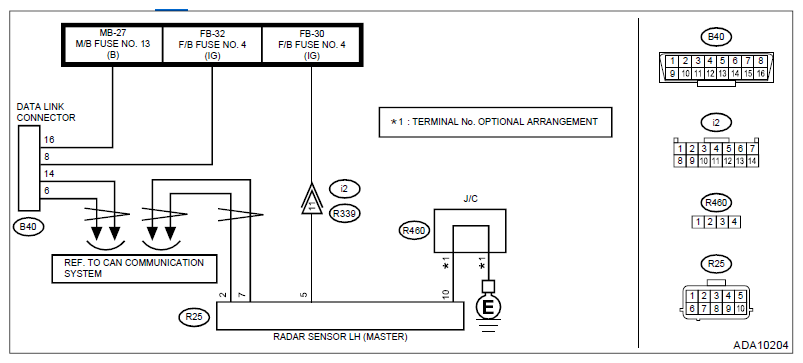

Fig 1: BSD/RCTA System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

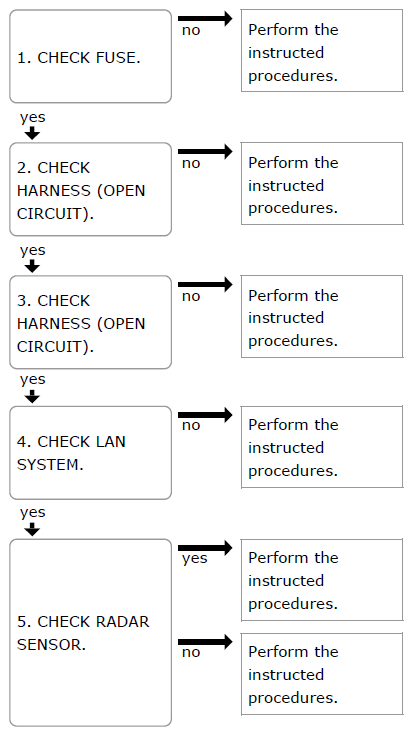

Fig 2: BSD/RCTA Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
