DTC B2304 Rear Radar On-Off Switch Stuck: Wiring diagram

BSD/RCTA system Ref. to Blind WIRING SYSTEM>Blind Spot Detection/Rear Cross Traffic Alert .

Fig 1: Rear Radar ON-OFF Switch Stuck System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

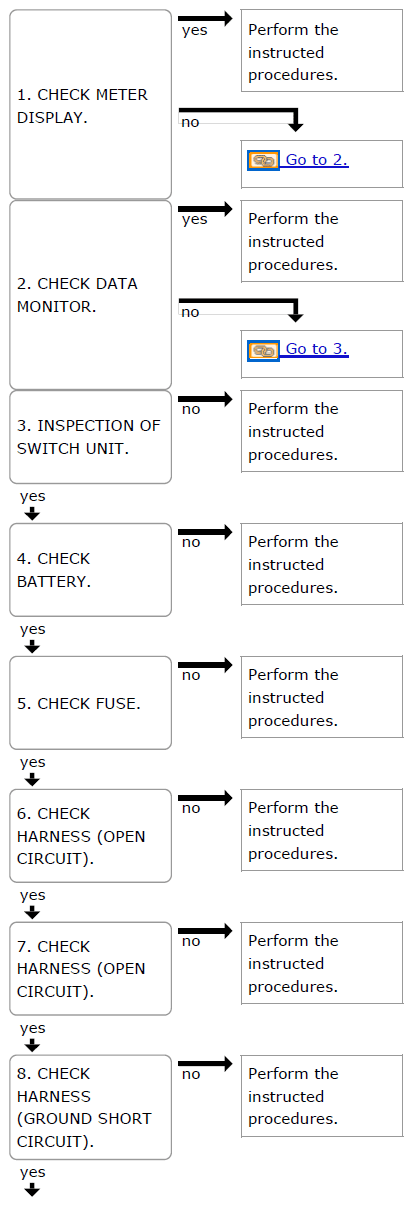

Fig 2: Rear Radar ON-OFF Switch Stuck Diagnostics Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Rear Radar ON-OFF Switch Stuck Diagnostics Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
