Diagnostic Procedure with Cancel Code: 12: Wiring diagram

Cruise control system Ref. to WIRING SYSTEM>Cruise Control System>WIRING DIAGRAM .

• Non-turbo model

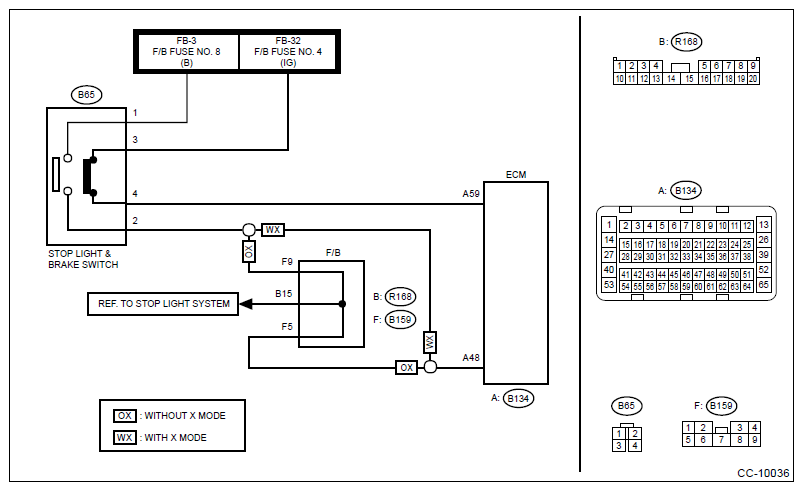

  Fig 1: Non-Turbo Model Cruise Control System Wiring Diagram (12)

  Courtesy of SUBARU OF AMERICA, INC.
• Turbo model

Fig 2: Turbo Model Cruise Control System Wiring Diagram (12)

Courtesy of SUBARU OF AMERICA, INC.

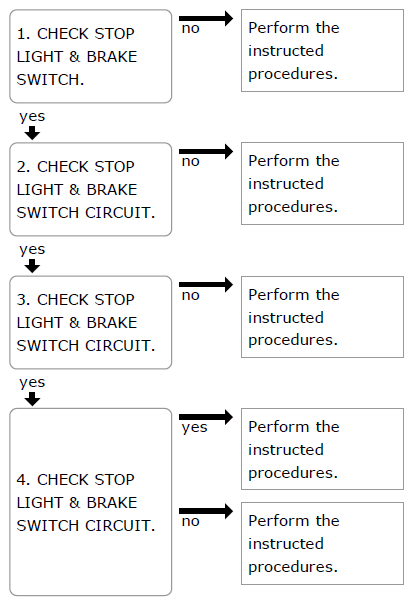

Fig 3: Turbo Model Cruise Control System Diagnosis Flowchart (12)

Courtesy of SUBARU OF AMERICA, INC.
