Basic Diagnostic Procedure: Procedure

CAUTION:

• When performing the entire diagnosis or cruise control diagnosis, first start the engine and wait until initial illumination of the ABS/VDC warning light completes. (If you start the diagnostics before performing the above procedures, the cancel code "43" is recorded and CRUISE indicator does not illuminate even though the CRUISE switch is pressed.)
• When performing diagnosis, observe the legal speed limit on the road.
• The cancel code will also appear when the cruise control is cancelled by the driver's operation. Do not confuse them.
• Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.

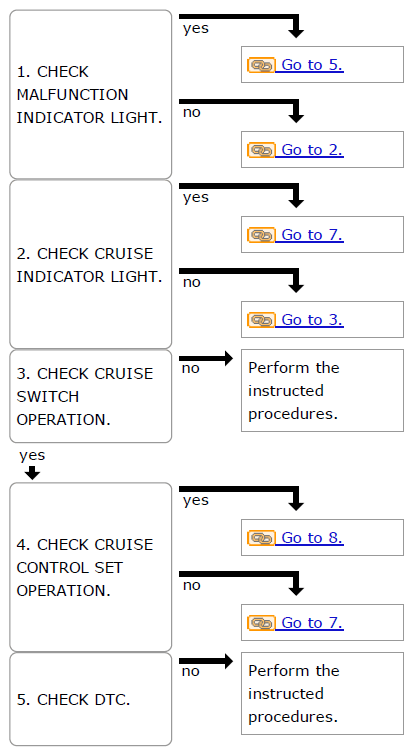

Fig 1: Cruise Control Diagnosis Flowchart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

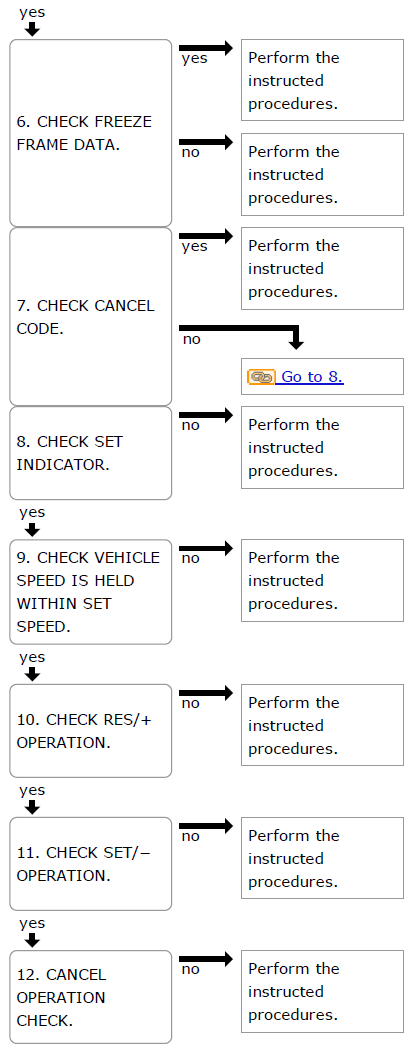

Fig 2: Cruise Control Diagnosis Flowchart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

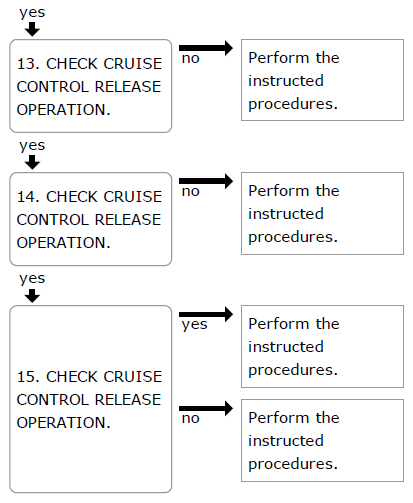

Fig 3: Cruise Control Diagnosis Flowchart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
