RELATED LINES 53 - 61 Ω (AIRBAG Control Module SYSTEM): Wiring diagram

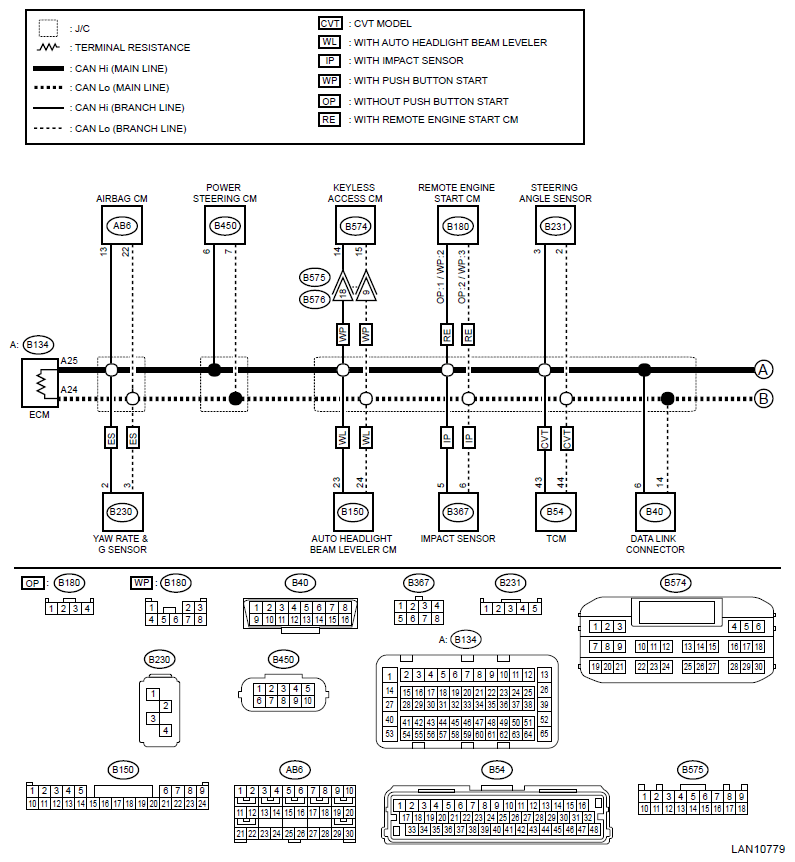

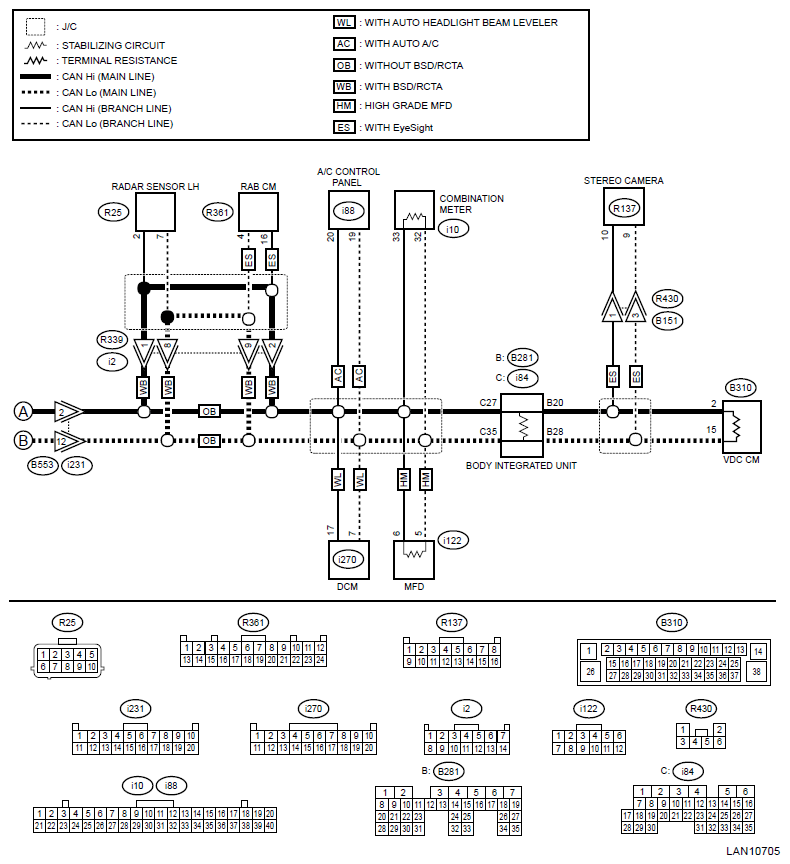

CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .

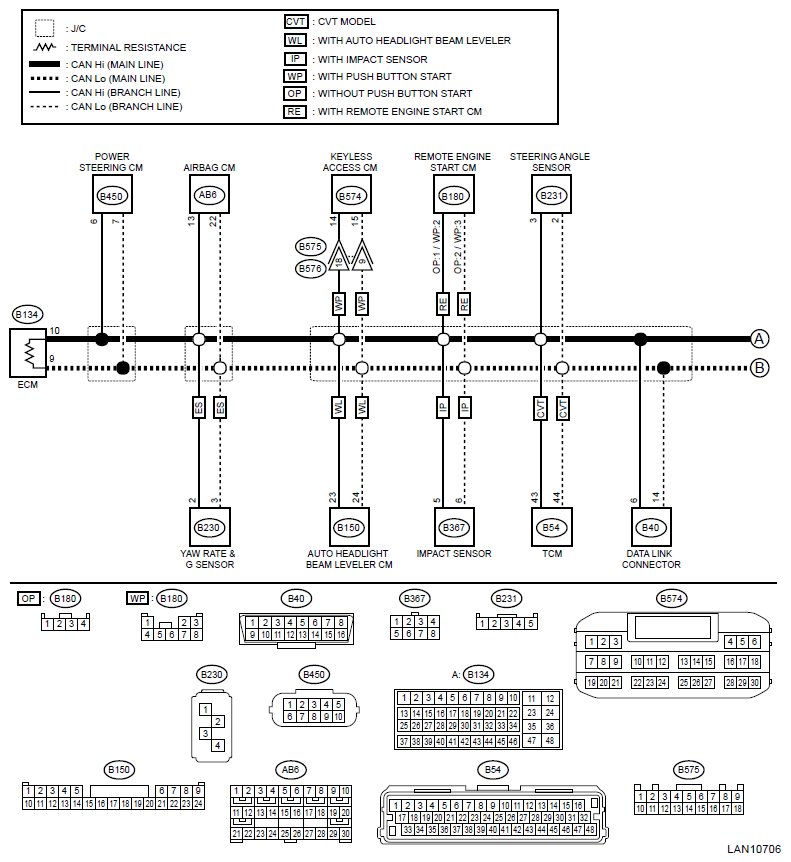

- Non-turbo model
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. NOTE: For test harness, refer to AIRBAG SYSTEM (DIAGNOSTICS). Ref. to AIRBAG(DIAGNOSTICS)>General Description>PREPARATION TOOL .
- Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.
- Remove the instrument panel lower cover and column cover, and disconnect the connectors (AB7) and (AB2).
- Remove the console front panel and disconnect the connector (AB9).
- Disconnect the connectors (AB6, AB17, AB18) from airbag control module.
- Connect the connector (1AH) in the test harness AH to the connectors (AB6, AB17, AB18).
- Connect the connector (2AH) in the test harness AH and the connector (1AG) in the test harness AG.
- Using the tester, measure the resistance between terminals.
Connector & terminal
(2AG) No. 2 - (4AG) No. 2:
Is the resistance 400 Ω or more?
- Yes : Related lines between airbag Control Module and main wiring harness is open, or main wiring harness is open at two places or more.
- No : Go to 2.
- CHECK RELATED LINES.
Using the tester, measure the resistance between terminals.
Connector & terminal
(2AG) No. 2 - (B40) No. 14:
(4AG) No. 2 - (B40) No. 6:
Is the resistance 10 Ω or more?
- Yes : Repair or replace the open circuit portion of airbag Control Module related lines.
- No : Check DTC of airbag Control Module. Ref. to AIRBAG(DIAGNOSTICS)>Basic Diagnostic Procedure .
