DTC U0230 Lost Communication With Power Rear Gate Control Module: Wiring diagram

Power rear gate system Ref. to WIRING SYSTEM>Power Rear Gate System>WIRING DIAGRAM .

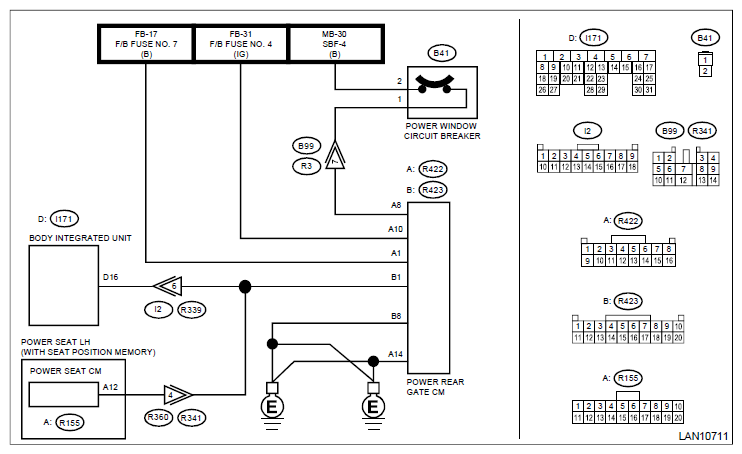

Fig 1: Lost Communication With Power Rear Gate Control Module System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

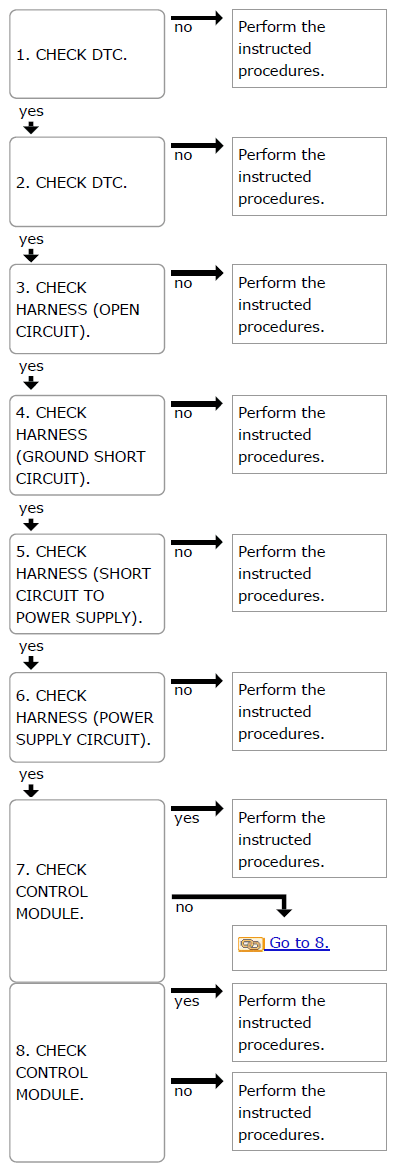

Fig 2: Lost Communication With Power Rear Gate Control Module Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
