DTC U0208 Lost Communication With Seat Memory: Wiring diagram

Power seat system Ref. to WIRING SYSTEM>Power Seat System>WIRING DIAGRAM .

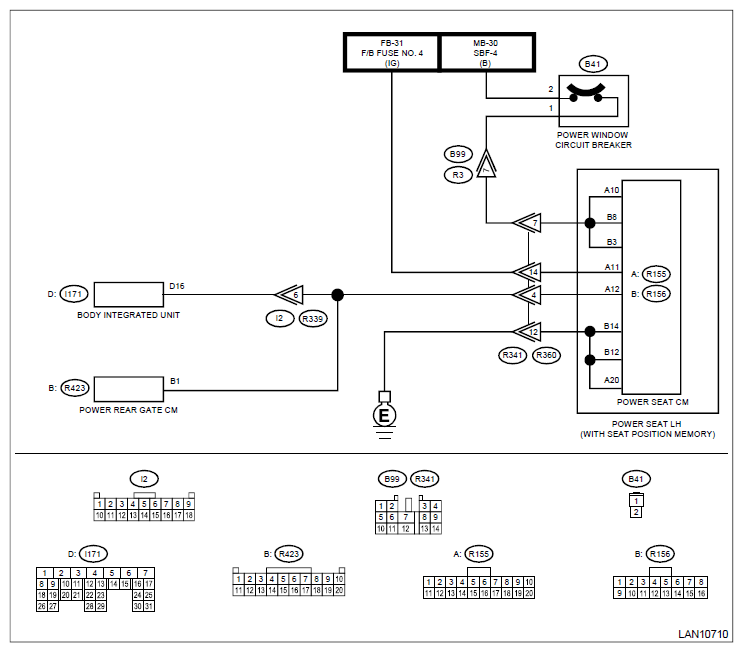

Fig 1: Lost Communication With Seat Memory System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

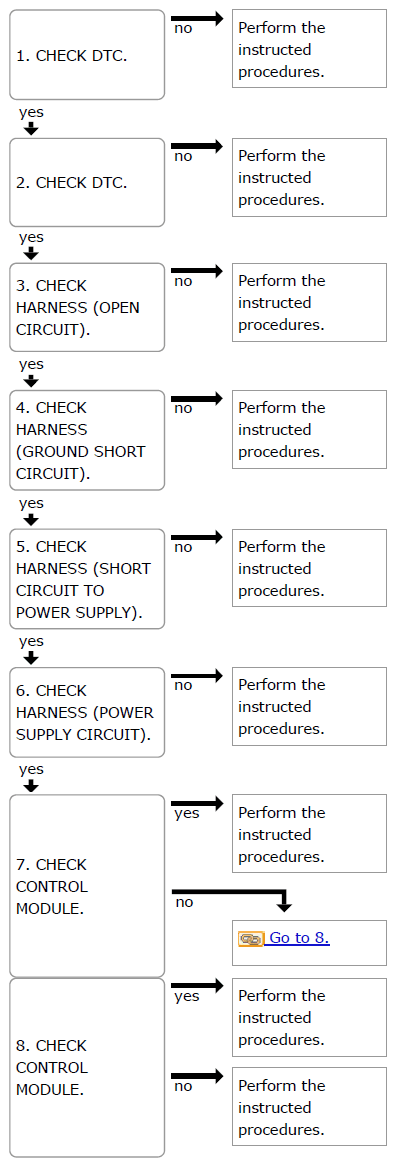

Fig 2: Lost Communication With Seat Memory Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
