DTC B1011 Battery Control Power Supply: Wiring diagram

Immobilizer system Ref. to WIRING SYSTEM>Immobilizer System>WIRING DIAGRAM .

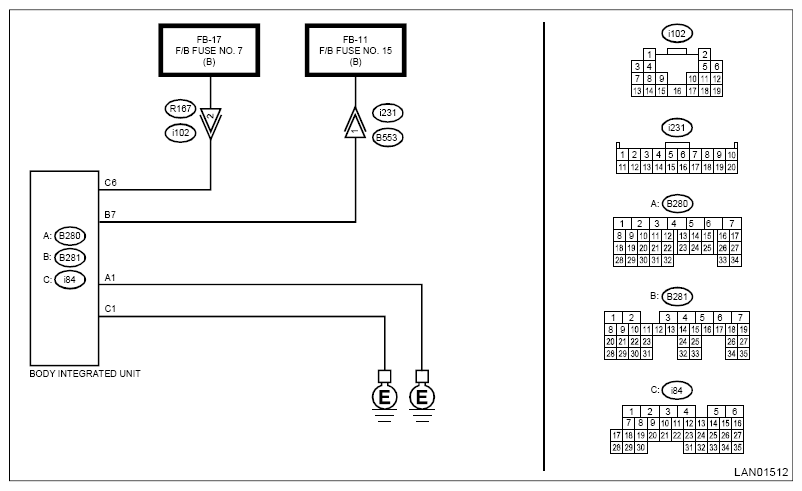

Fig 1: Battery Control Power Supply System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When [DTC B1012 BATTERY BACKUP POWER SUPPLY] is output at the same time, all function of body integrated unit may not operate.

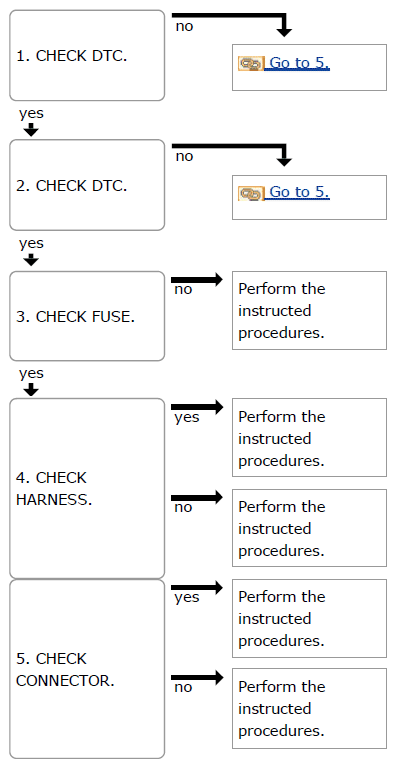

Fig 2: Battery Control Power Supply Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
