Basic Diagnostic Procedure: Procedure

CAUTION:

• Subaru Select Monitor is required for reading DTC, performing diagnosis and reading data monitor.
• Remove foreign matter (dust, water, oil, etc.) from the body integrated unit connector during removal and installation.
• Registration of immobilizer may be needed after the replacement of control modules, etc. For detailed procedure, contact an authorized Subaru Dealership..

NOTE:

• To check harness for open or short circuits, shake the suspected trouble spot or connector.
• Check List for Interview Ref. to BODY CONTROL(DIAGNOSTICS)>Check List for Interview .

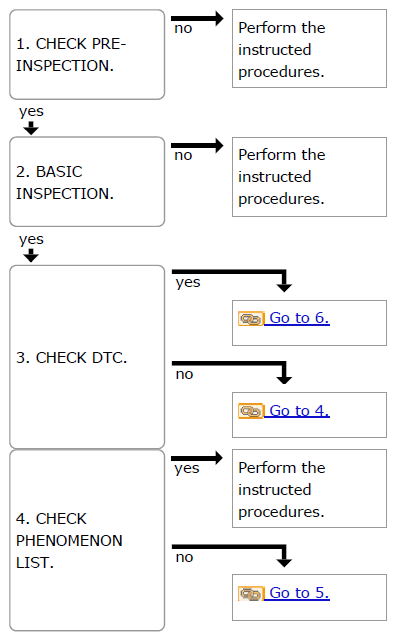

Fig 1: Body Control Diagnostics Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Body Control Diagnostics Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
