Seat Heater System
>>
Wiring Diagram
>>
Rear Seat
Rear Seat

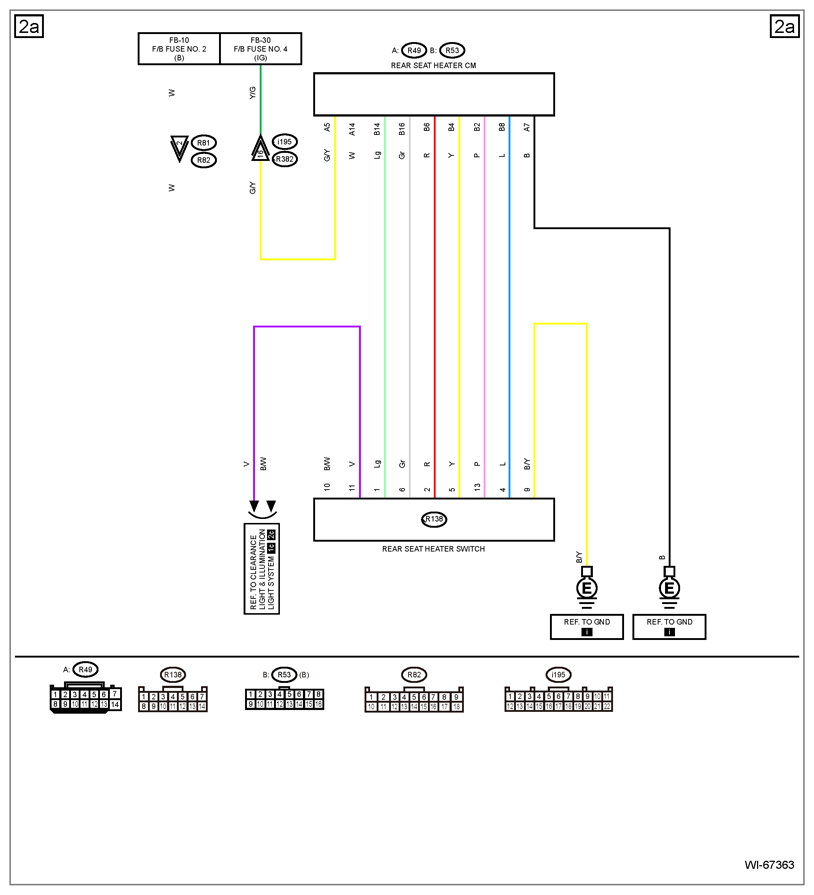

Fig 1: Rear Seat Heater System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

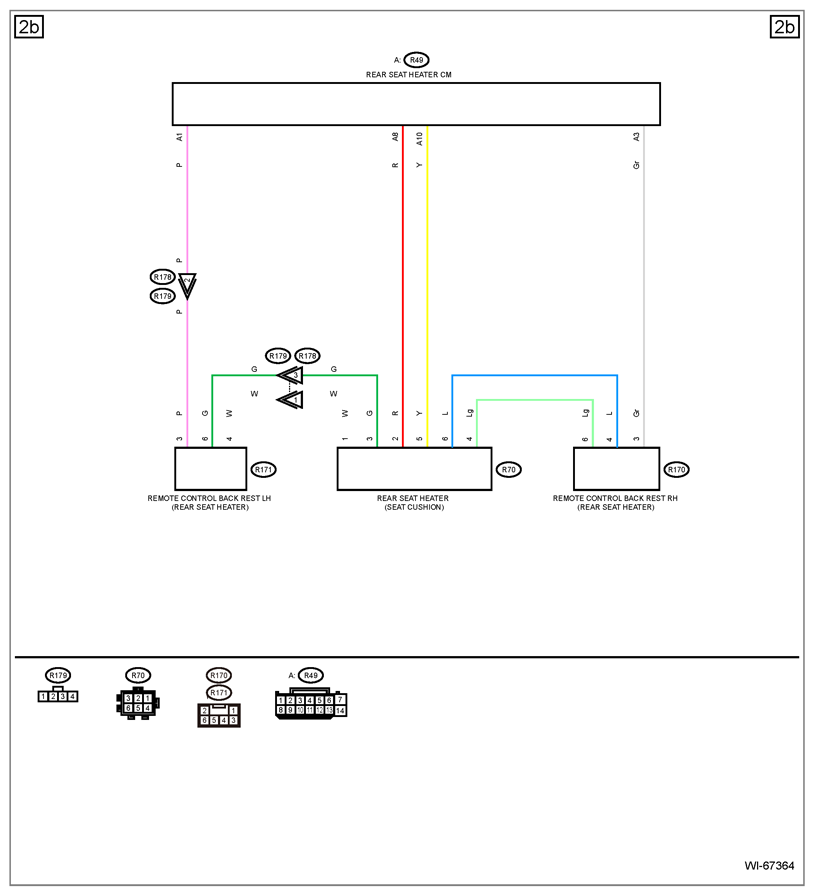

Fig 2: Rear Seat Heater System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
