Rear Wiring Harness and Rear Gate Cord: Location

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

R16

⁽¹⁾

C-3

Rear door switch RH

R22

⁽¹⁾

C-1

Rear door switch LH

R25

C-3

Radar sensor LH (master)

R26

C-4

Rear combination light RH

R28

B-2

Rear combination light LH

R29

D-2

Rear vehicle height sensor

R32

⁽¹⁾

C-2

Rear accessory power supply socket (cargo room)

R38

⁽¹⁾

B-3

D34

Rear gate cord

R39

⁽¹⁾

B-3

D35

R49

⁽¹⁾

C-4

Rear seat heater Control Module

R53

C-4

R58

⁽¹⁾

D-3

Fuel pump assembly

R59

⁽¹⁾

D-2

Fuel sub level sensor

R61

C-5

Radar sensor RH (slave)

R70

⁽¹⁾

C-3

Rear seat heater (seat cushion)

R72

D-4

Rear ABS wheel speed sensor RH

R73

C-2

Rear ABS wheel speed sensor LH

R79

⁽¹⁾

C-2

Trailer connector

R80

⁽¹⁾

B-3

Keyless entry Control Module (without push button start, without TPMS)

R97

⁽¹⁾

B-2

Antenna

R122

⁽¹⁾

C-4

Fuel pump Control Module

R133

⁽¹⁾

D-4

Condenser RH

R134

⁽¹⁾

C-2

Condenser LH

R141

C-4

Luggage room light

R170

⁽¹⁾

C-3

Remote control back rest RH

R171

⁽¹⁾

C-1

Remote control back rest LH

R172

⁽¹⁾

C-4

Remote control back rest switch RH

R173

⁽¹⁾

C-1

Remote control back rest switch LH

R178

⁽¹⁾

C-2

R179

Rear wiring harness

R179

⁽¹⁾

C-2

R178

R180

⁽¹⁾

C-2

J/C

R181

⁽¹⁾

C-2

R211

⁽¹⁾

C-4

TPMS Control Module (with push button start, with TPMS)

R221

⁽¹⁾

C-4

TPMS & keyless entry Control Module (without push button start, with TPMS)

R296

⁽¹⁾

B-3

Receiver (with push button start)

R297

⁽¹⁾

D-3

Keyless access interior antenna (rear)

R298

⁽¹⁾

D-3

Keyless access interior antenna (center)

R361

⁽¹⁾

C-2

RAB Control Module

R362

C-3

R368

Sonar sensor cord

R364

D-2

Sonar sensor (left corner)

R365

D-3

Sonar sensor (left inner)

R366

C-4

Sonar sensor (right corner)

R367

C-4

Sonar sensor (right inner)

R368

C-3

R362

Rear wiring harness

R400

⁽¹⁾

C-3

Leak check valve assy

R421

⁽¹⁾

C-1

Power rear gate drive unit

R422

C-1

Power rear gate Control Module

R423

D-1

R460

⁽¹⁾

C-2

J/C

R461

⁽¹⁾

C-2

R462

Rear wiring harness

R462

⁽¹⁾

C-2

R461

⁽¹⁾	White or natural color

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

D34

⁽¹⁾

B-3

R38

Rear wiring harness

D35

⁽¹⁾

B-3

R39

D39

⁽¹⁾

A-3

High-mounted stop light

D43

⁽¹⁾

A-4

Rear wiper motor

D44

⁽¹⁾

A-5

License plate light RH

D46

⁽¹⁾

A-4

Rear gate lock actuator & latch switch

D47

A-4

Rear gate opener button (without push button start)

D48

⁽¹⁾

A-2

Rear defogger

D77

⁽¹⁾

A-4

Rear lock button & rear gate opener button & keyless access exterior antenna (rear)

D80

⁽¹⁾

A-5

D81

Rear gate cord (LWR)

D81

⁽¹⁾

A-5

D80

Rear gate cord (UPR)

D85

⁽¹⁾

A-4

Rearview camera

D89

⁽¹⁾

A-4

Rear defogger

D137

⁽¹⁾

A-4

License plate light LH

D150

⁽¹⁾

A-3

Power rear gate touch sensor LH

D151

⁽¹⁾

A-5

Power rear gate touch sensor RH

D152

A-4

Power rear gate buzzer

D153

⁽¹⁾

A-4

Power rear gate auto closer

D154

⁽¹⁾

A-5

Power rear gate inner switch

D155

⁽¹⁾

A-5

D156

Rear gate cord (LWR)

D156

⁽¹⁾

A-5

D155

Rear gate cord (UPR)

⁽¹⁾	White or natural color

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
AB31	2	B	B-1		Curtain airbag module LH
AB32	4	Y	C-1		Curtain airbag sensor LH
AB33	2	B	B-3		Curtain airbag module RH
AB34	4	Y	C-3		Curtain airbag sensor RH
AB41	2	Y	C-2		Satellite safing sensor
*: White or natural color

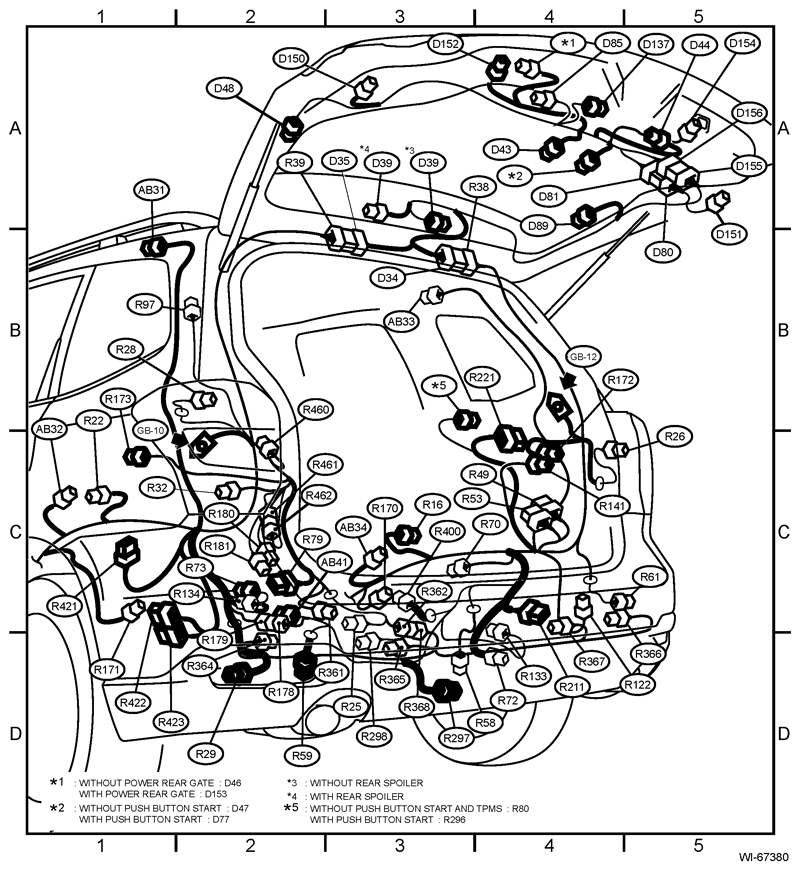

Fig 1: Identifying Rear Wiring Harness And Rear Gate Cord Connectors

Courtesy of SUBARU OF AMERICA, INC.
