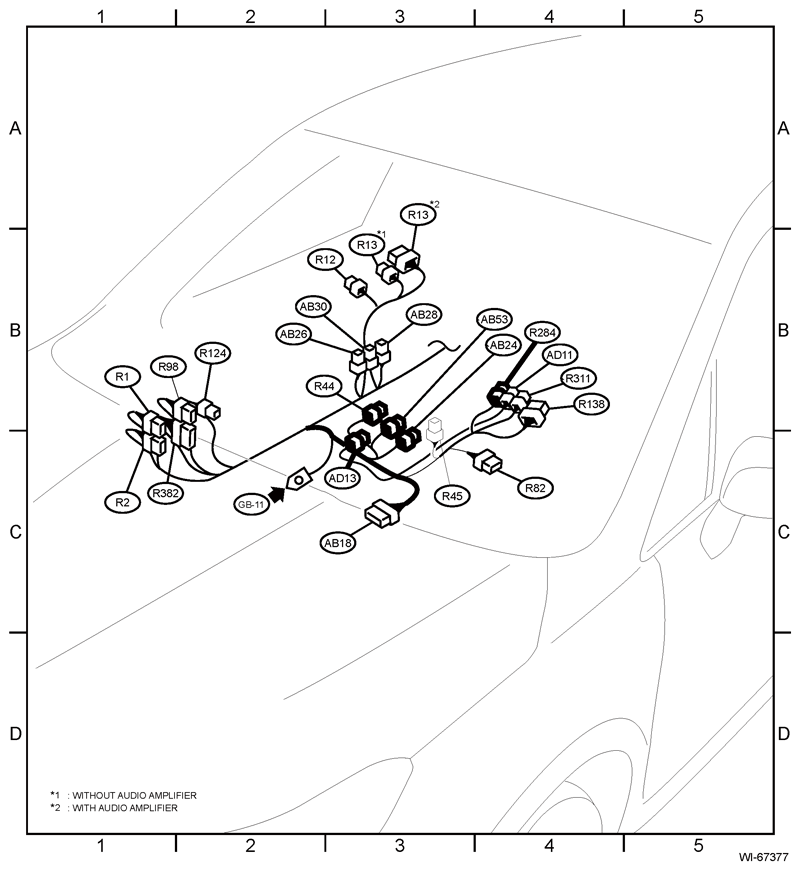

Rear Wiring Harness RH: Location
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| R1 | 14 | (1) | B-1 | B97 | Bulkhead wiring harness | ||
| R2 | 18 | (1) | C-1 | B98 | |||
| R12 | 3 | (1) | B-3 | Front door switch RH | |||
| R13 | 8 | (1) | B-3 | D28 | Rear door cord RH (without audio amplifier) | ||
| 10 | (1) | B-3 | D28 | Rear door cord RH (with audio amplifier) | |||
| R44 | 4 | (1) | B-3 | Seat heater RH | |||
| R45 | 6 | Br | C-3 | Seat heater switch RH | |||
| R82 | 18 | (1) | C-4 | R81 | Rear wiring harness LH | ||
| R98 | 19 | (1) | B-2 | 153 | Instrument panel wiring harness | ||
| R124 | 2 | (1) | B-2 | AB63 | Airbag wiring harness | ||
| R138 | 14 | (1) | B-4 | Rear seat heater switch | |||
| R284 | 8 | (1) | B-4 | AUX input terminal | |||
| R311 | 2 | (1) | B-4 | Rear accessory power supply socket (console) | |||
| R382 | 22 | (1) | C-2 | 195 | Instrument panel wiring harness | ||
|
|||||||
| Connector | Connecting to | ||||
|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description |
| AB18 | 24 | Y | C-3 | Airbag Control Module | |
| AB24 | 4 | Y | C-3 | Side airbag module RH | |
| AB26 | 2 | B | B-3 | Pretensioner RH | |
| AB28 | 4 | Y | B-3 | Side airbag sensor RH | |
| AB30 | 2 | Y | B-3 | Lap seat belt pretensioner RH | |
| AB53 | 3 | Gr | B-3 | Occupant detection control module | |
| *: White or natural color | |||||
| Connector | Connecting to | ||||
|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description |
| AD11 | 4 | B | B-4 | AUX input terminal | |
| AD13 | 4 | B | C-3 | Audio (without navigation) | |
| 4 | B | C-3 | Navigation unit (with navigation) | ||
| *: White or natural color | |||||
