Front Combination Light Halogen Model

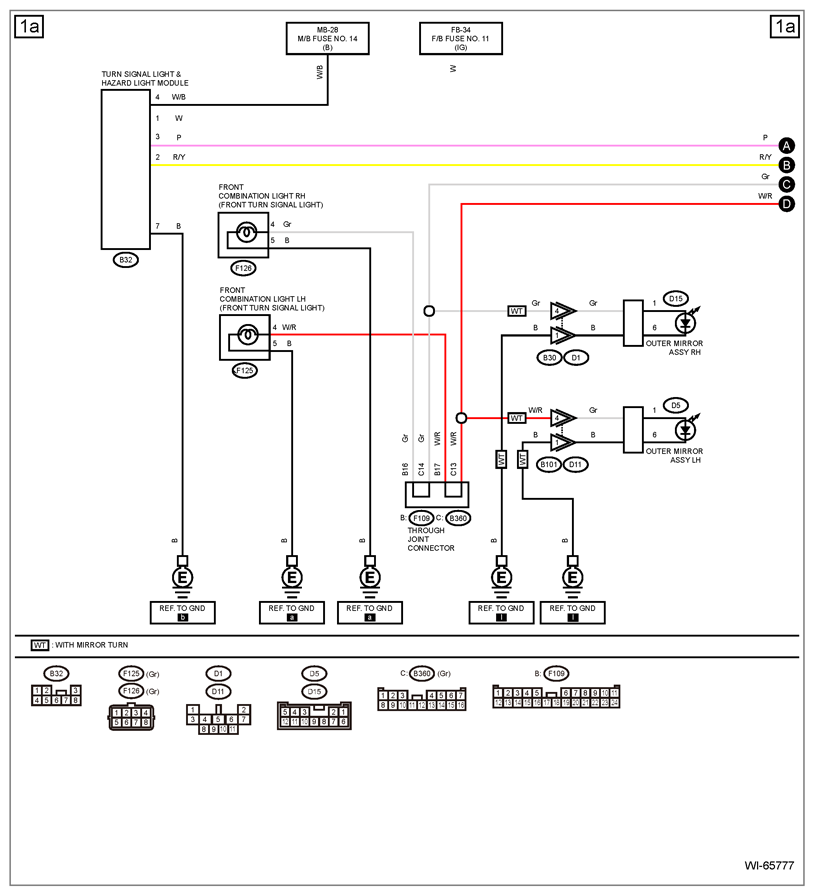

Fig 1: Front Combination Halogen Model Turn Signal And Hazard Light System Wiring Diagram (1 Of 3)
G11272558Courtesy of SUBARU OF AMERICA, INC.

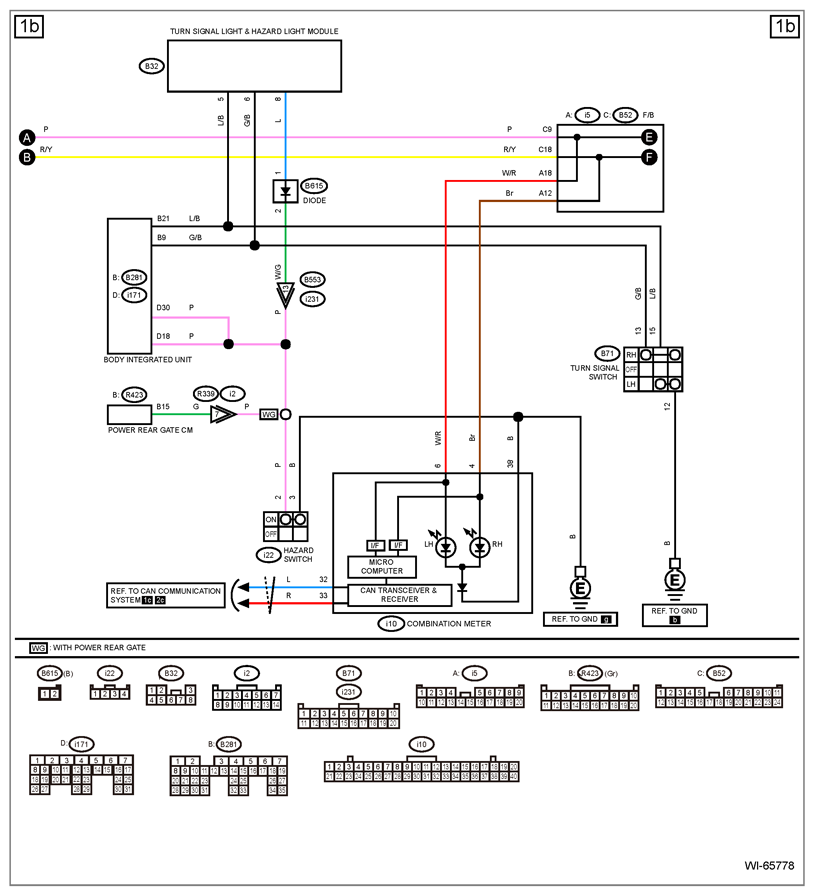

Fig 2: Front Combination Halogen Model Turn Signal And Hazard Light System Wiring Diagram (2 Of 3)
G11272559Courtesy of SUBARU OF AMERICA, INC.

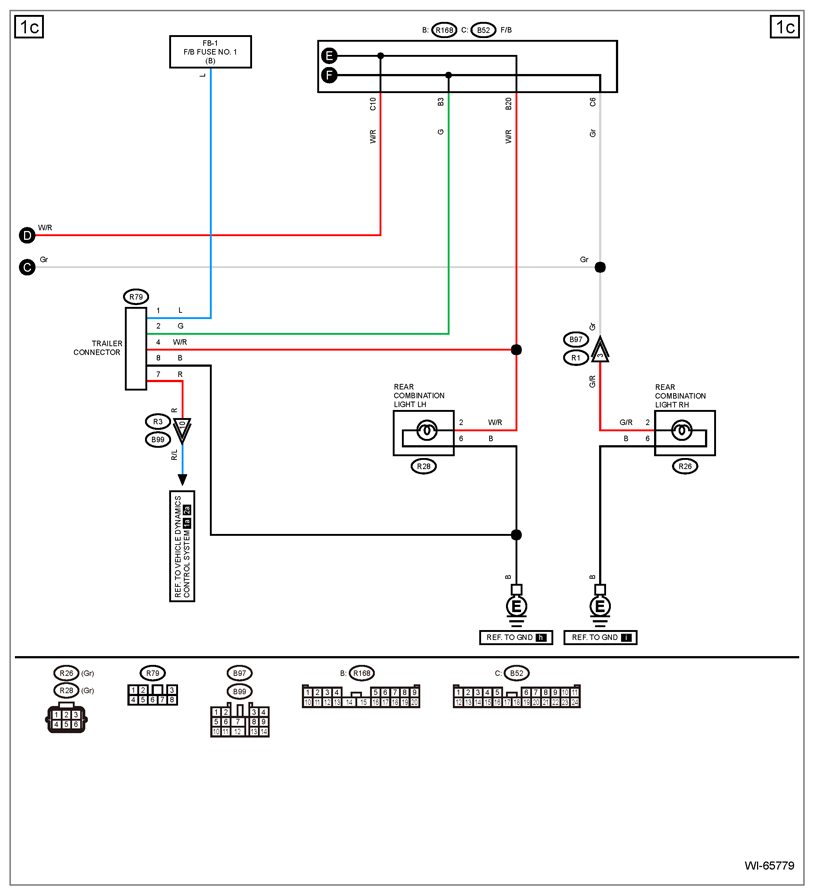

Fig 3: Front Combination Halogen Model Turn Signal And Hazard Light System Wiring Diagram (3 Of 3)
G11272560Courtesy of SUBARU OF AMERICA, INC.
