OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Telematics System
>>
Wiring Diagram
>>
With Audio Amplifier
With Audio Amplifier

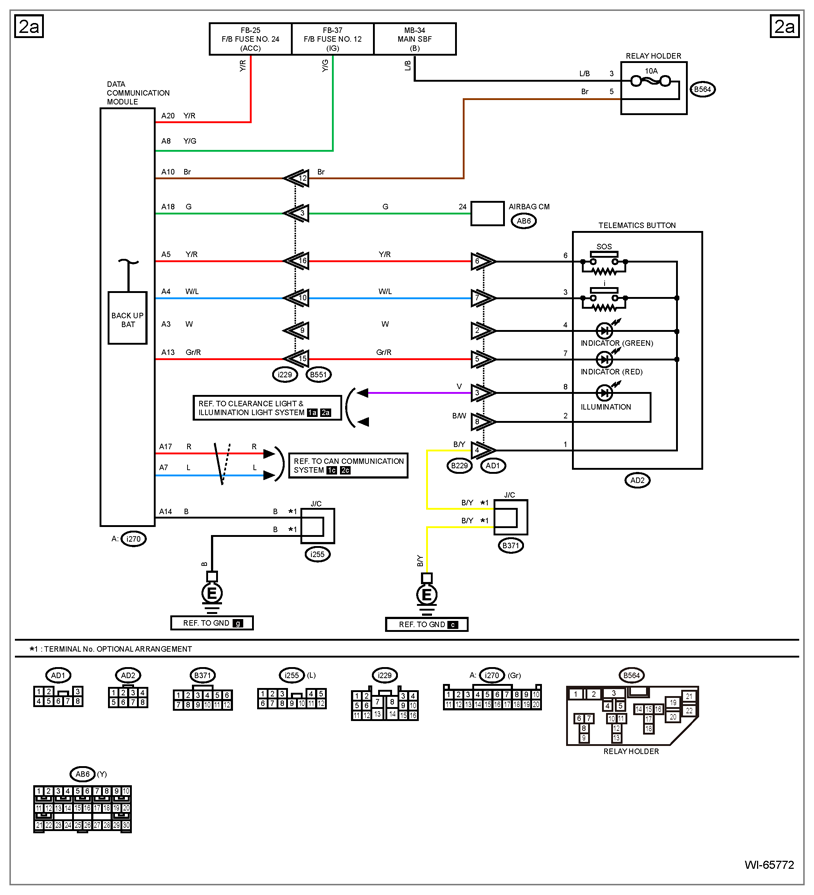

Fig 1: With Audio Amplifier Telematics System Wiring Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

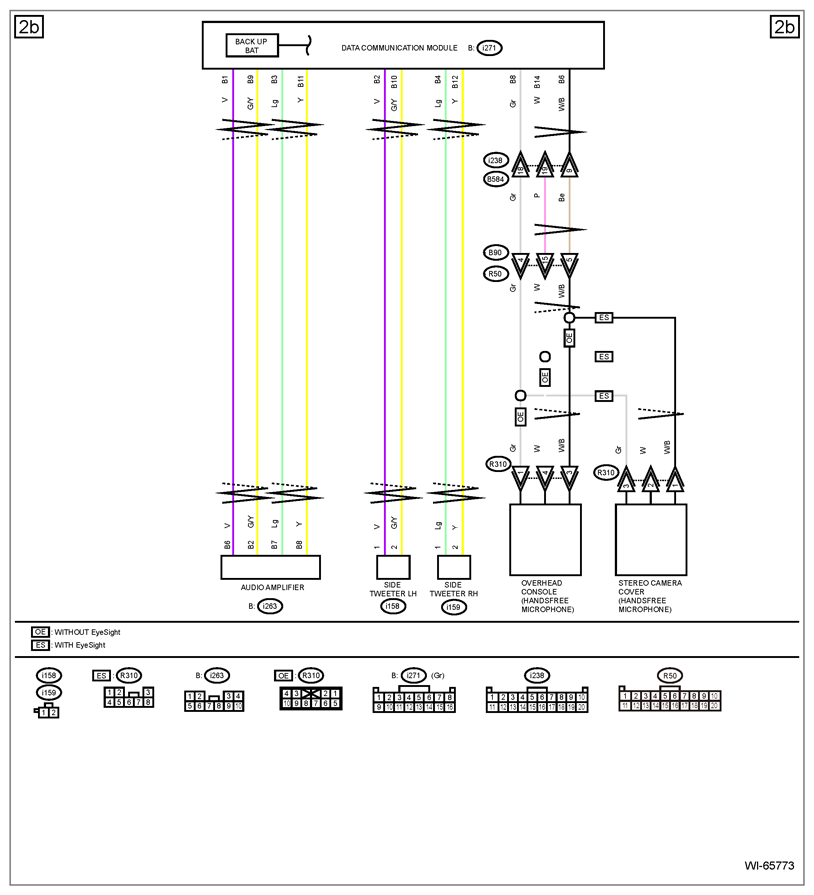

Fig 2: With Audio Amplifier Telematics System Wiring Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

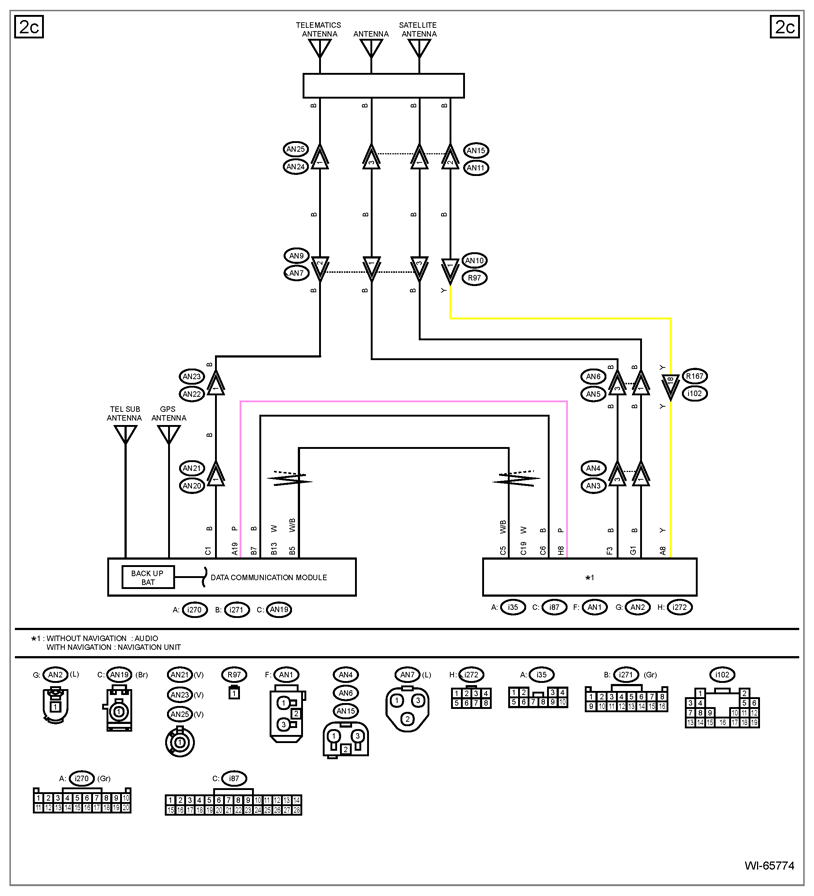

Fig 3: With Audio Amplifier Telematics System Wiring Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
