Non-Turbo Model (With Push Button Start)

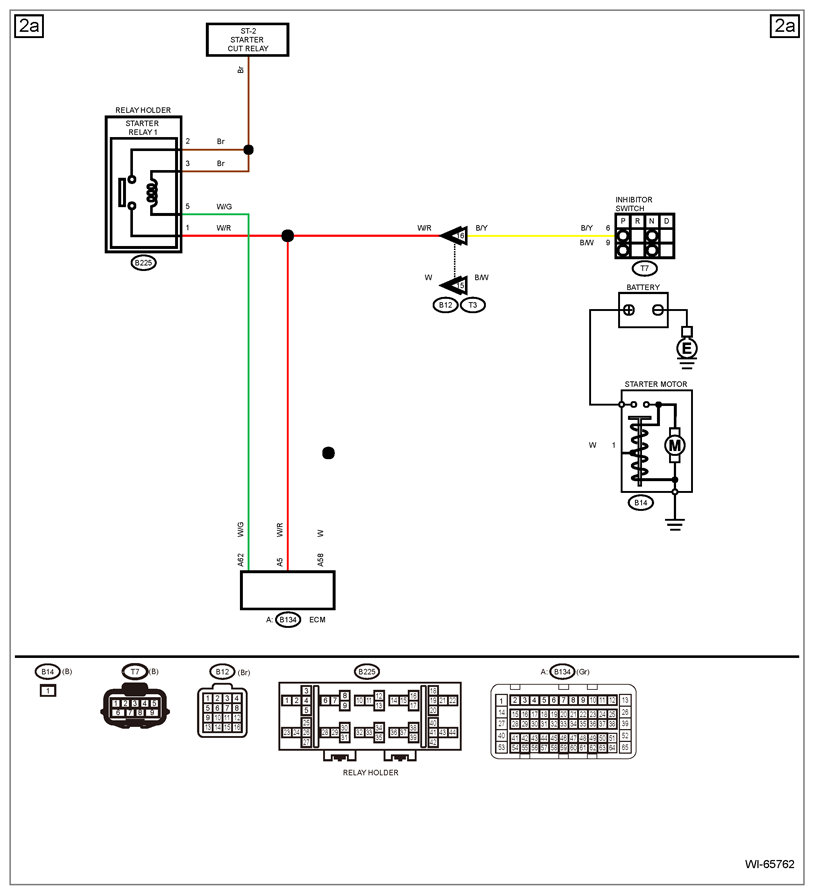

Fig 1: Non-Turbo Model With Push Button Start Starter System Wiring Diagram
G11272542Courtesy of SUBARU OF AMERICA, INC.
